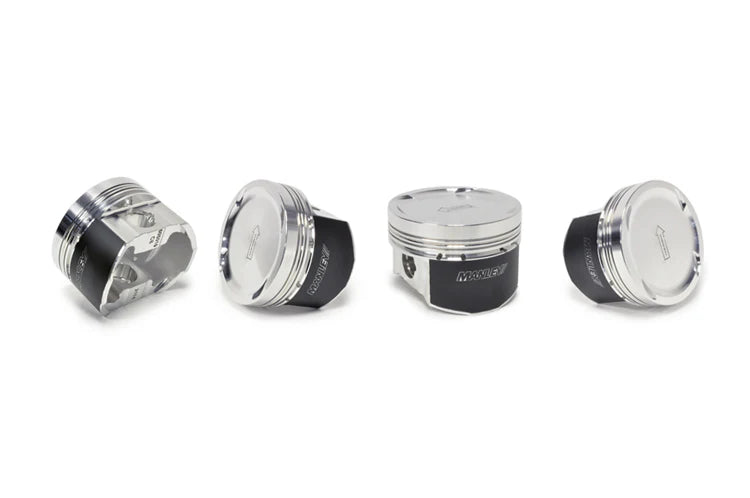

618210C-4 Manley Pistons 4G63 7-Bolt
618210C-4 Manley Pistons 4G63 7-Bolt
Regular price
$678.86
Regular price
Sale price
$678.86
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
<head><meta charset="UTF-8" /></head>Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
Piston Specs:
| Part Number: | 618210C‑4 |
| Pin: |
Standard Pin .150" Wall x 2.250" (Premium Chrome Moly) .866" / 22mm Pin |
| Bore Size: | 86 (+1mm) |
| Rod Length: | 150 mm |
| Stroke: | 94 Stroker (2.1L) |
| Comp Distance: | 1.248" |
| Dome Volume: | -8 cc |
| Cylinder Head cc: |
47 cc for DSM 43 cc for EVO |
| Compression Ratio: |
10.0:1 for DSM 10.5:1 for EVO |
| Piston Type: | Dish |
| Weight: | 337 Grams |
| Ring Set: | 46860‑4 |
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
