AMS Performance Alpha Fuel System - Fuel Rail Kit Lamborghini | Audi 2015-2022

AMS Performance Alpha Fuel System - Fuel Rail Kit Lamborghini | Audi 2015-2022

Regular price $699.95
Regular price Sale price $699.95
Sale Sold out
Shipping calculated at checkout.

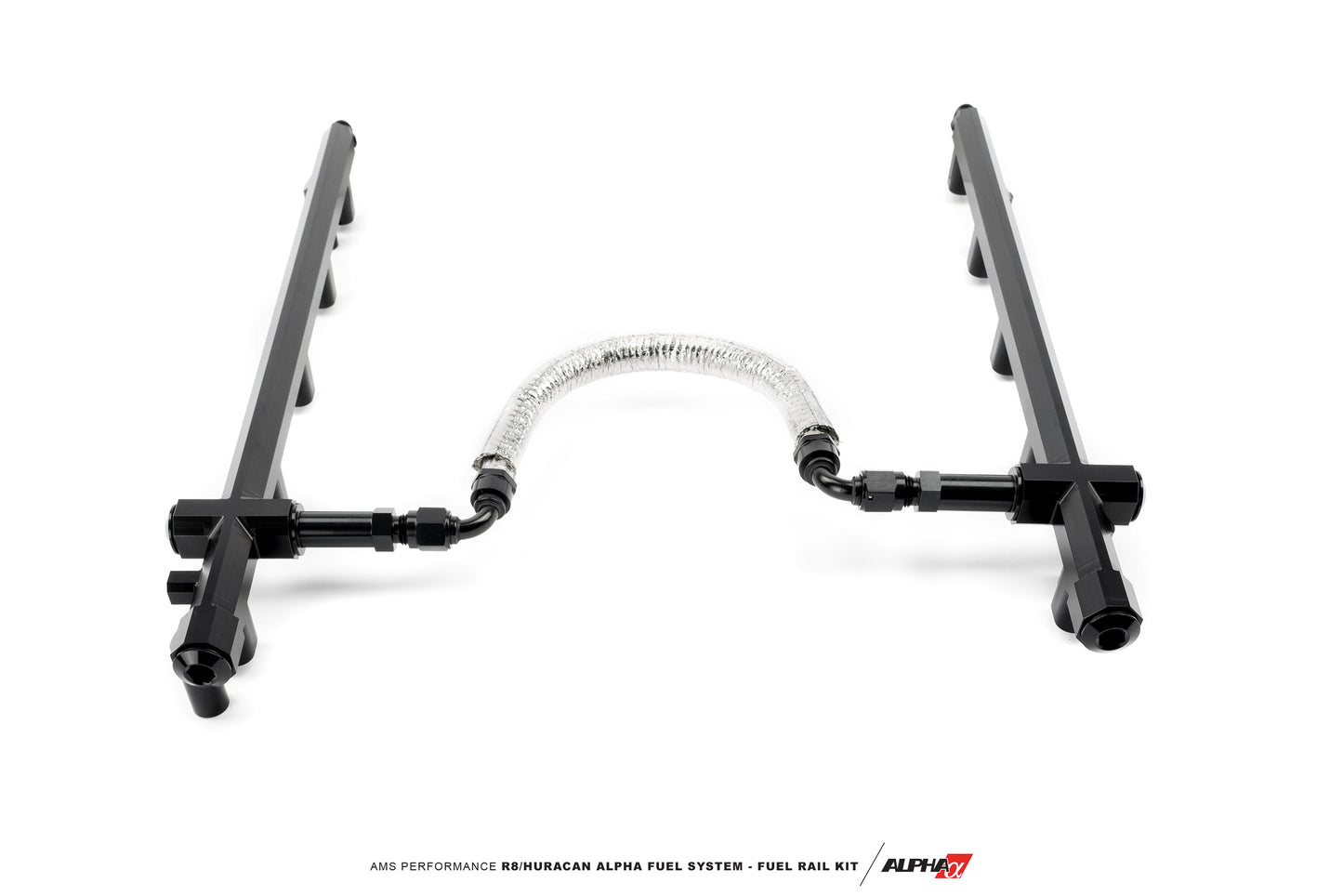

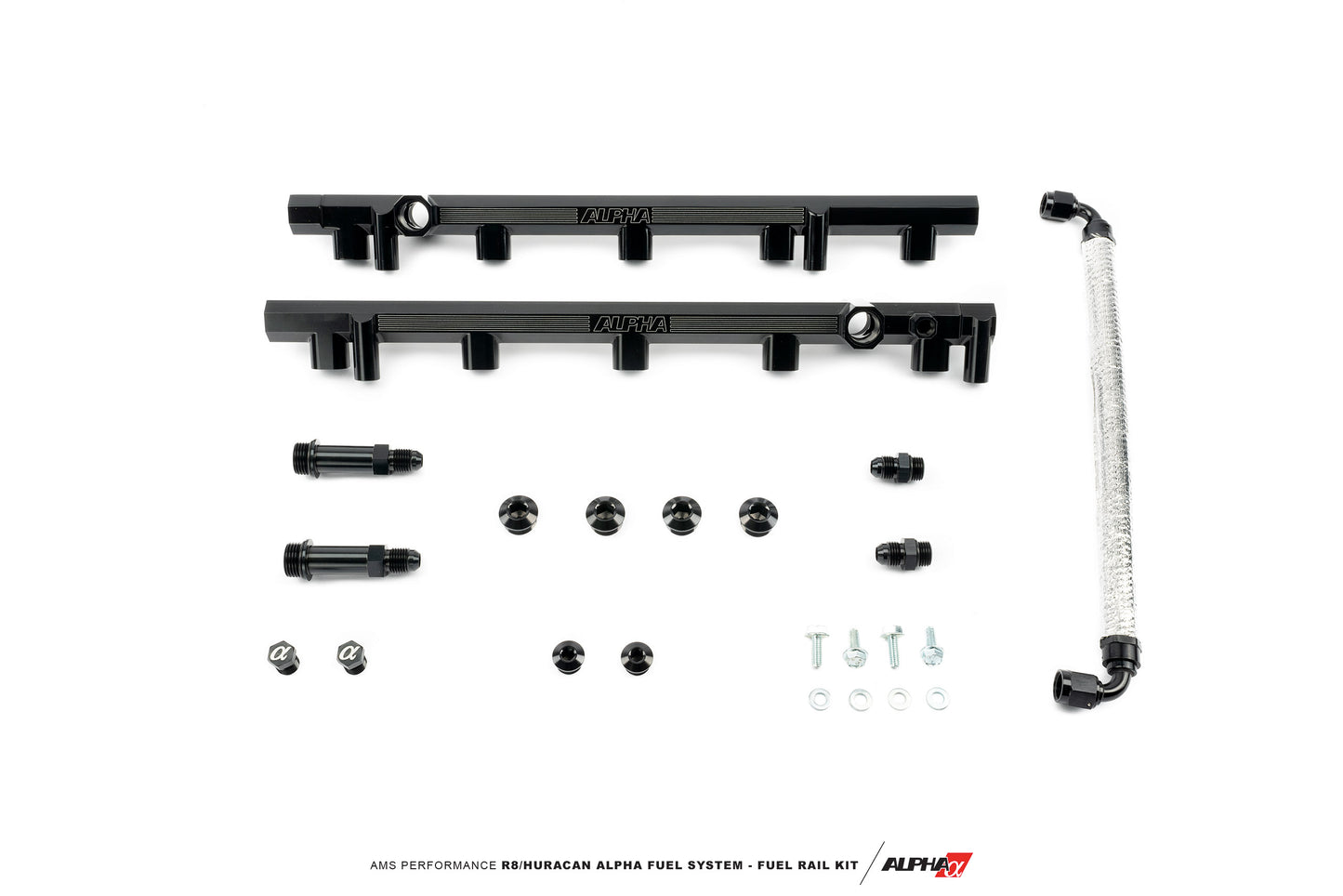

The Alpha Fuel System Fuel Rail Kit is all about giving you options. With four additional ports available over the stock fuel rails, the Fuel Rail Kit allows for a multitude of different ways to plumb your fuel lines. Whether it is a series or parallel routing, or a returned or returnless system routing, the Fuel Rail Kit allows for it. Our AMS Snailworks? Engineering Team has designed a kit where the choices are up to you. Alternatively, you can take the guesswork out and match this Fuel Rail Kit with the rest of our Alpha Fuel System, and our FPR and Fuel Line Kit will be a perfect match.


  • Full Alpha Fuel System supports 2400+ HP of fuel delivery on gasoline and 1600+ HP on e85
  • All materials and components are fully ethanol and methanol compatible
  • Multiple ports available for custom plumbed fuel routing options
  • Confirmed fitment with OEM intake manifold and AMS Alpha Intake Manifold

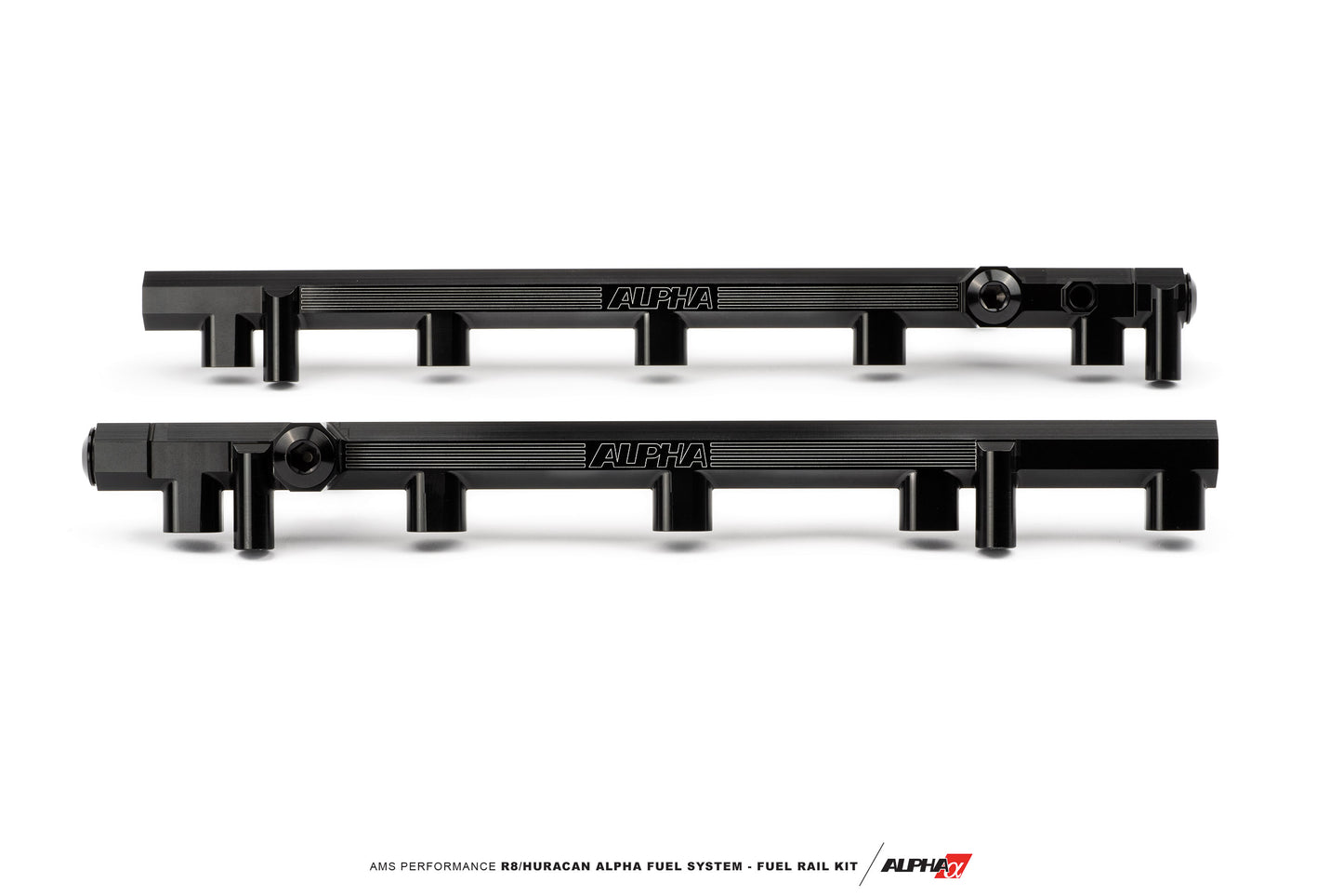

  • CNC machined black anodized 6061 T6 billet aluminum fuel rails

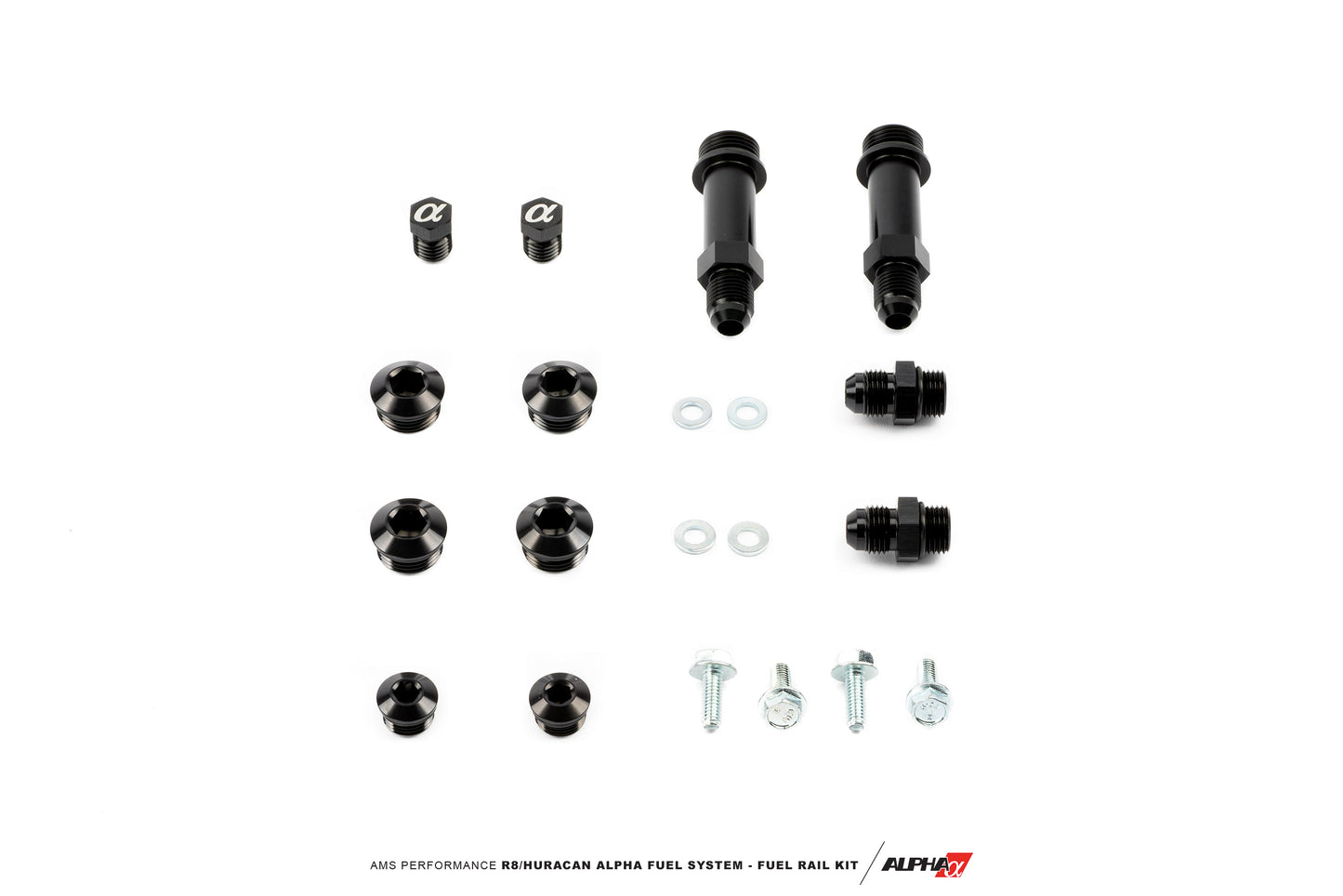

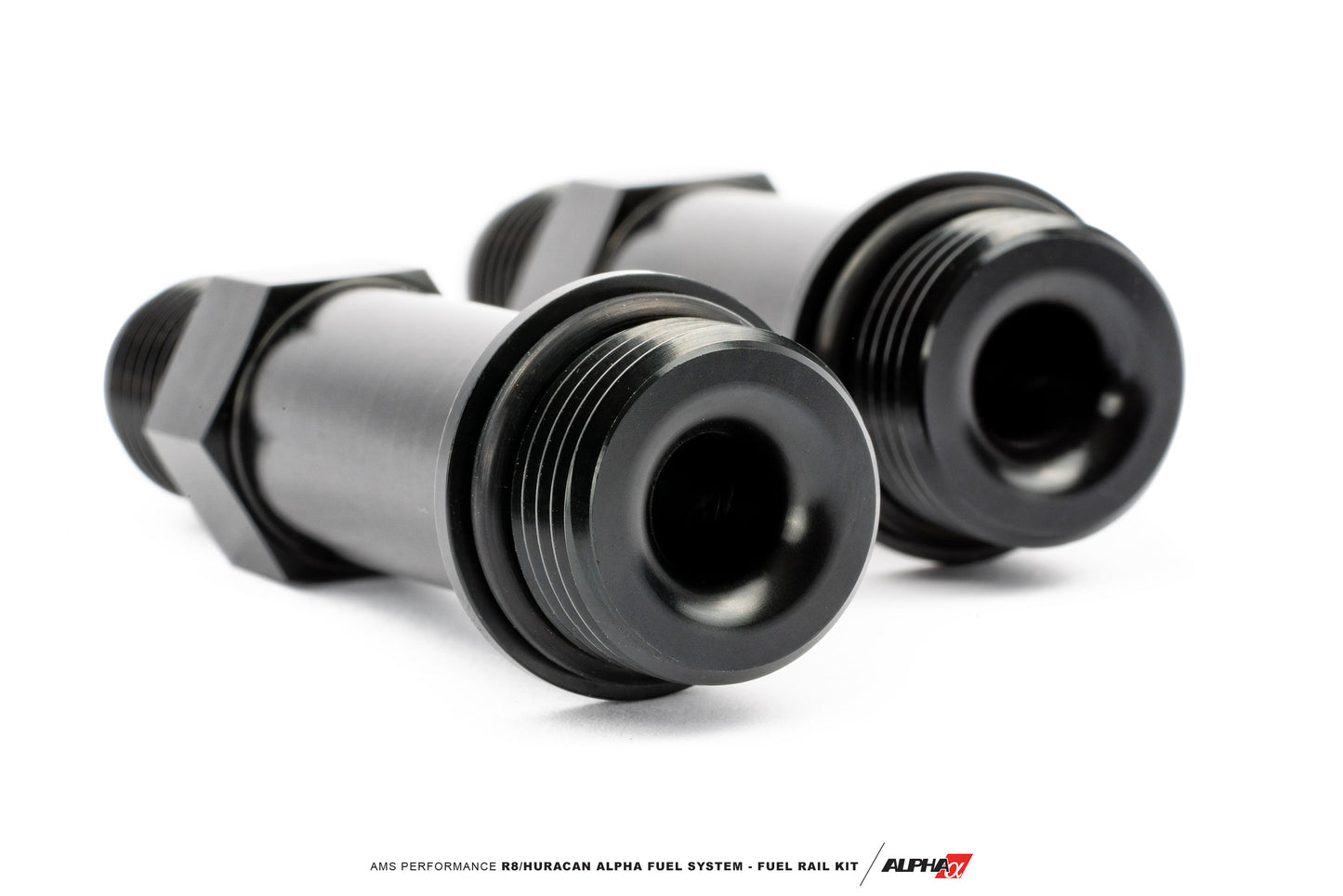

  • Uses race-grade AN fittings for easy install and leak-free operation
  • Silver line sheath for improved heat management
  • Utilizes all race-grade, 2000+ PSI rated, PTFE lined hose for durability and fuel fume control
  • Lamborghini Huracan 2015-2019
  • Lamborghini Huracan Evo 2019-2022
  • Lamborghini Huracan Evo Spyder 2021-2022
  • Audi R8 2017-2021
  • The subcomponents of the R8/Huracan Alpha Fuel System are all designed to be used in conjunction with one another. Some custom fitting will be necessary if you are not using the complete Alpha Fuel System.
  • Installation instructions are located on the included USB flash drive.


Other Part Numbers:
AMS Performance #ALP.37.07.0004-1
