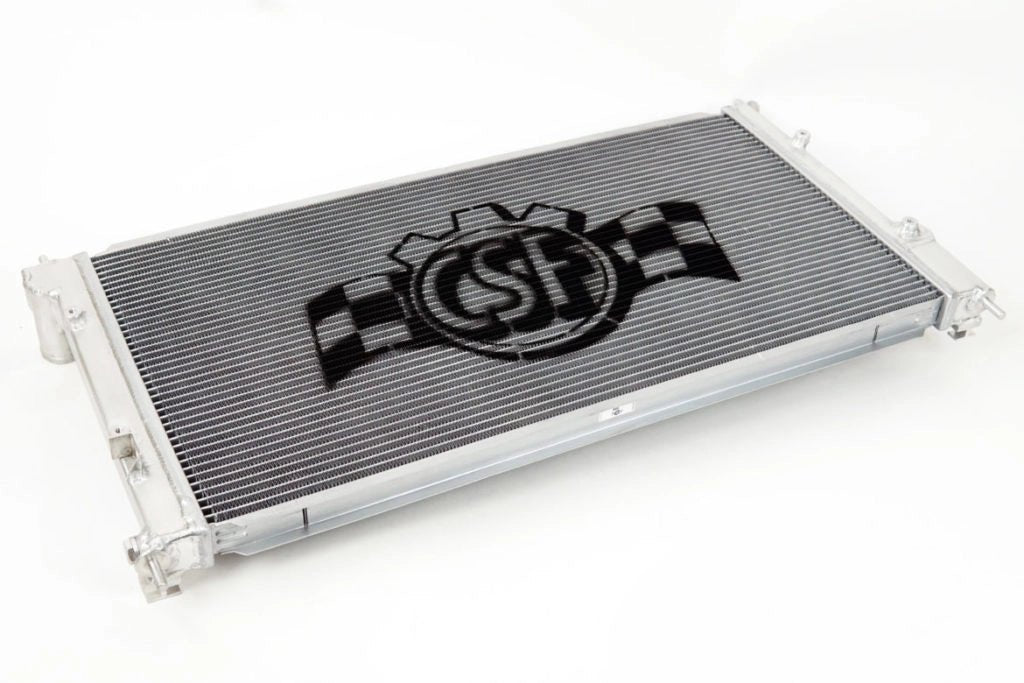

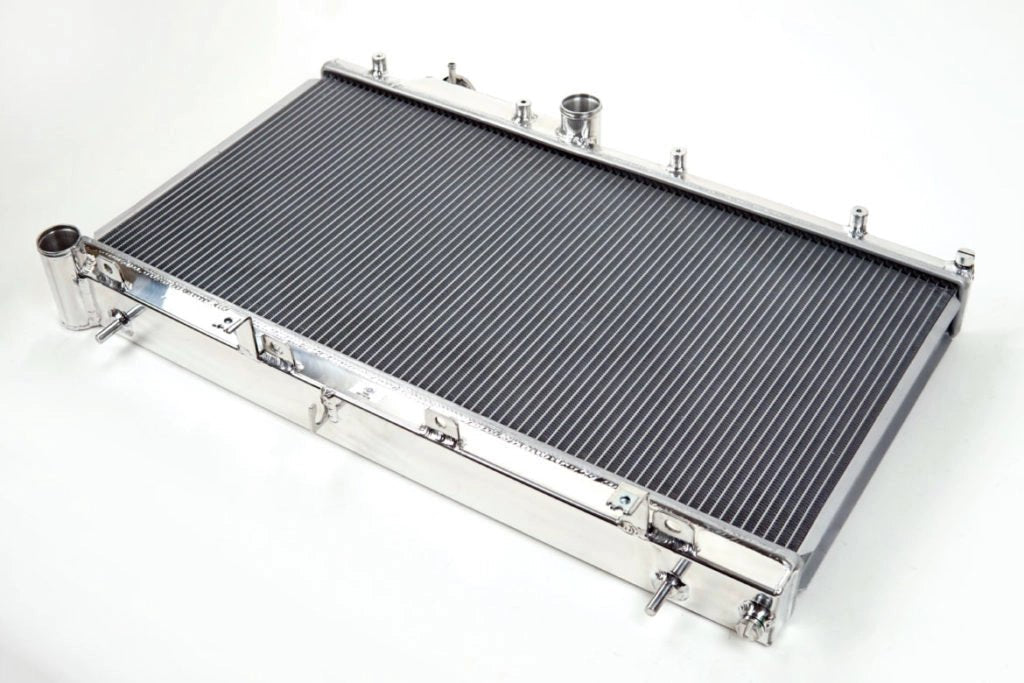

CSF High Performance Single Row Aluminum Radiator 2008-2021 WRX / 2008-2021 STI / 2013-2017 Crosstrek / 2005-2009 Legacy / 2009-2013 Forester
CSF High Performance Single Row Aluminum Radiator 2008-2021 WRX / 2008-2021 STI / 2013-2017 Crosstrek / 2005-2009 Legacy / 2009-2013 Forester
This radiator will not be a direct fit for automatic vehicles, and is designed specifically for use with MT vehicles.
CSF manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry leading testing methods to maximize airflow and heat dissipation. These techniques allow CSF to stay ahead of the pack when it comes to radiator technology! “B-Tube” technology – Unlike a regular oval shape “O” type radiator tube, CSF uses a specially engineered tube in a shape of a “B”. These “B-tubes” are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (better cooling efficiency) because this design is actually stronger than normal “O” shape tubes that are welded. The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes. You get the efficiency of 2 smaller tubes vs. 1 large tube within the same space criteria. With “B-tubes” you are able to get “dual liquid laminar flow.” High Efficiency Multi Louvered Fin – CSF uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
1-Row 31mm High-Performance Radiator

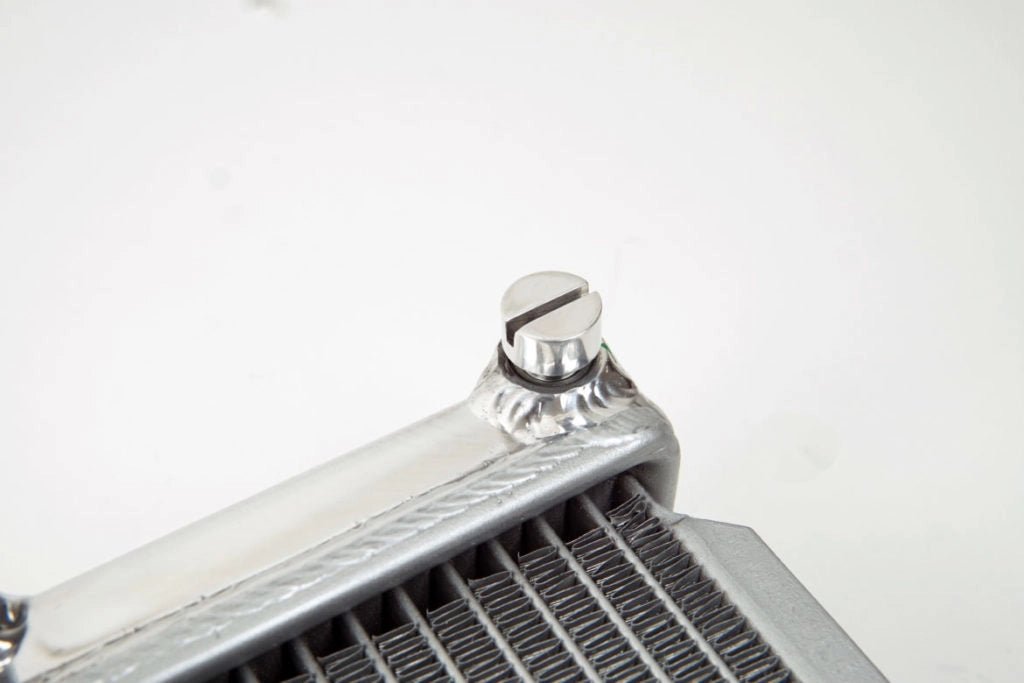

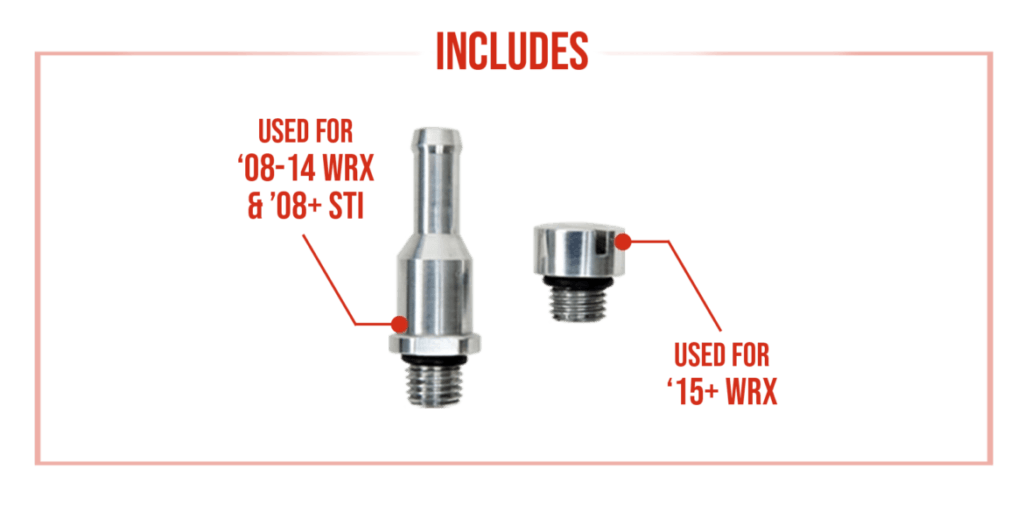

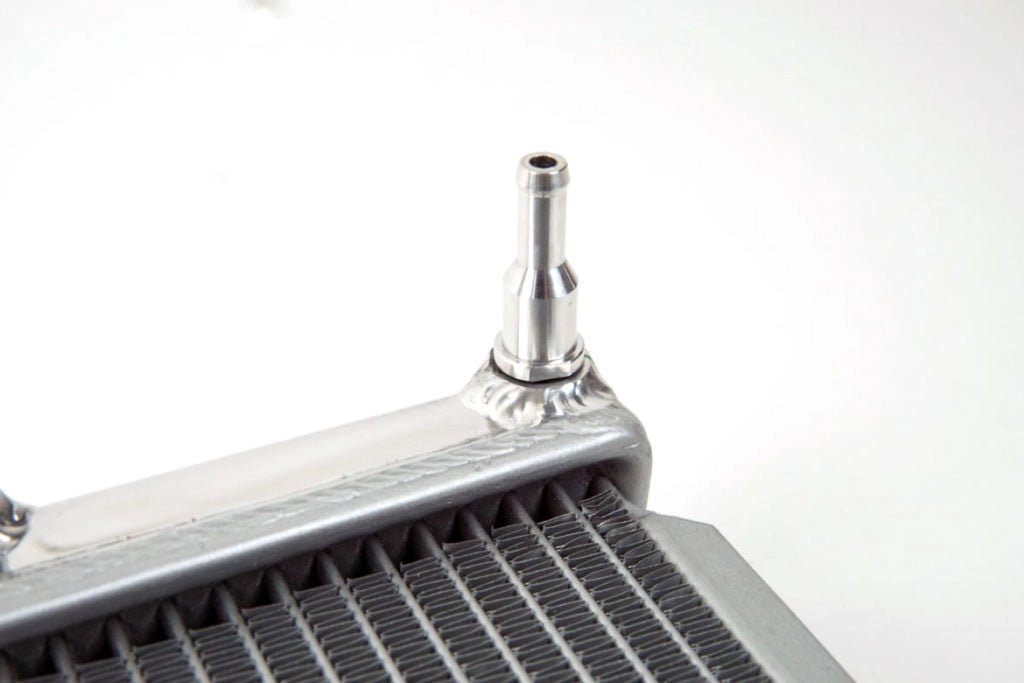

If you have a 7028 and wish to use it on a 2015+ WRX the Turbo Return Pipe on Top Right-Hand Side End Tank must be capped off.
08+ Subaru Impreza STI (MT)
08-14 Subaru Impreza WRX (MT)
NEW! 15+ Subaru WRX (MT)
12-16 Subaru Impreza (MT)
05-09 Subaru Legacy (MT)
05-10 Subaru Outback (MT)
13-17 Subaru Crosstrek (MT)
13-15 Subaru XV Crosstrek (MT)
09-13 Subaru Forester (MT)
