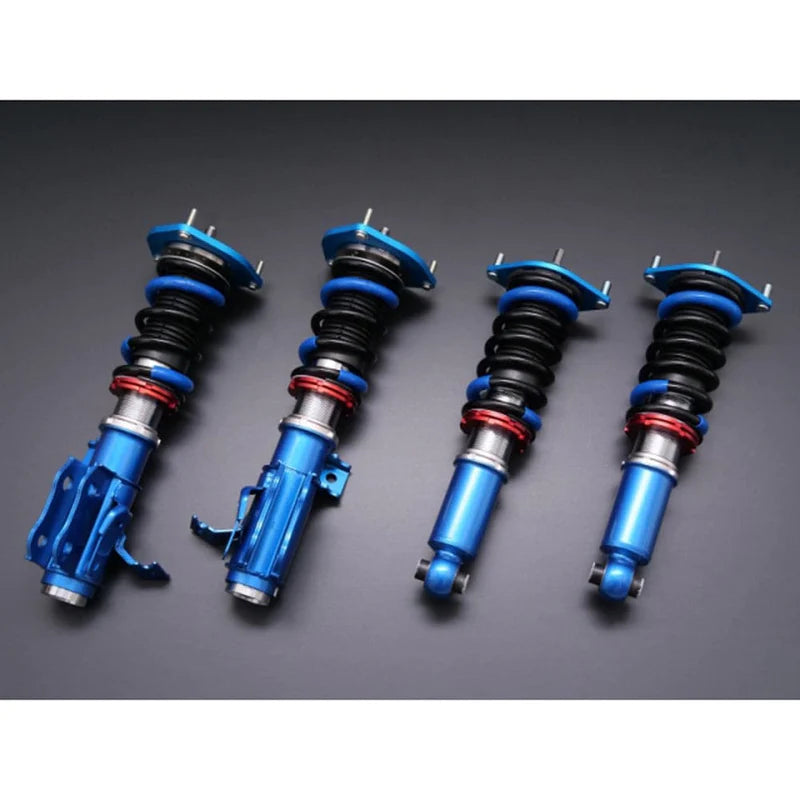

CUSCO 2022 TOYOTA GR86 / SUBARU BRZ SPORT STREET ZERO TWINTUBE 40-WAY - HARD REAR UPPER MOUNT

Comfortable and agile driving with outstanding capabilities! CUSCO high-performance parts are properly tested for performance development in the genuine vehicle. We started engineering parts to enhance the comfort and speed of the vehicle`s characteristics. The parts are released after obtaining optimum performance from the prototypes and driving tests. All CUSCO parts are designed for total balance driving. Please look forward to our high-quality genuine tuning parts MADE IN JAPAN.

NOTE

• Recommended vehicle height adjustment range is data from our developed vehicle. The maximum vehicle height adjustment range is a calculated physical limit value, and actual installation and running confirmation have not been performed. Also, please note that it may not meet the safety standards. If the vehicle is used outside the recommended vehicle height adjustment range, problems such as shock, suspension kit, and damage to the vehicle may occur. Please note that we are not responsible for any use other than the recommended vehicle height.
• For vehicles equipped with Toyota Safety Sense and preventive safety equipment, malfunction may occur due to a decrease in vehicle height. Please note that we are not responsible for any malfunction caused by installing this product.
• When installing this product on a vehicle equipped with EyeSight, we have not confirmed the EyeSight function. Please note that.

APPLICATIONS

• Toyota GR86 (2022)
• Subaru BRZ (2022)

FEATURES

• Full-length adjustment type vehicle height adjustment (front / full tap type)
• Front and rear damping force fixed model
• Double cylinder type shock absorber with mild ride quality
• Reliable domestic production, ISO9001 certified factory production, ASEA standard certified product
• Front: Camber adjustable pillow
• Upper mount Rear: Reinforced rubber upper mount

SPECIFICATIONS

[Standard spring]
　Front: 7 kgf / mm (065-150-07R) Rear
　: 7 kgf / mm (065-180-07)
[Optional rate spring]
　Front: 8,9 kgf / mm Rear:
　8,9 kgf / mm
[Recommended vehicle height adjustment width *]
　Front: -35 to 0 mm
　Rear: -35 to -5 mm
[Reference vehicle height]
　Front: -20 mm
　Rear: -20 mm
[Maximum vehicle height adjustment width]
　Front: -50 to 0 mm
　rear: -55 to 0 mm
