Darton MID Sleeve - install service

This service includes the following:

• Darton MID sleeves for selected application.
• New ARP main stud kit for selected application.
• Line hone of Mains.

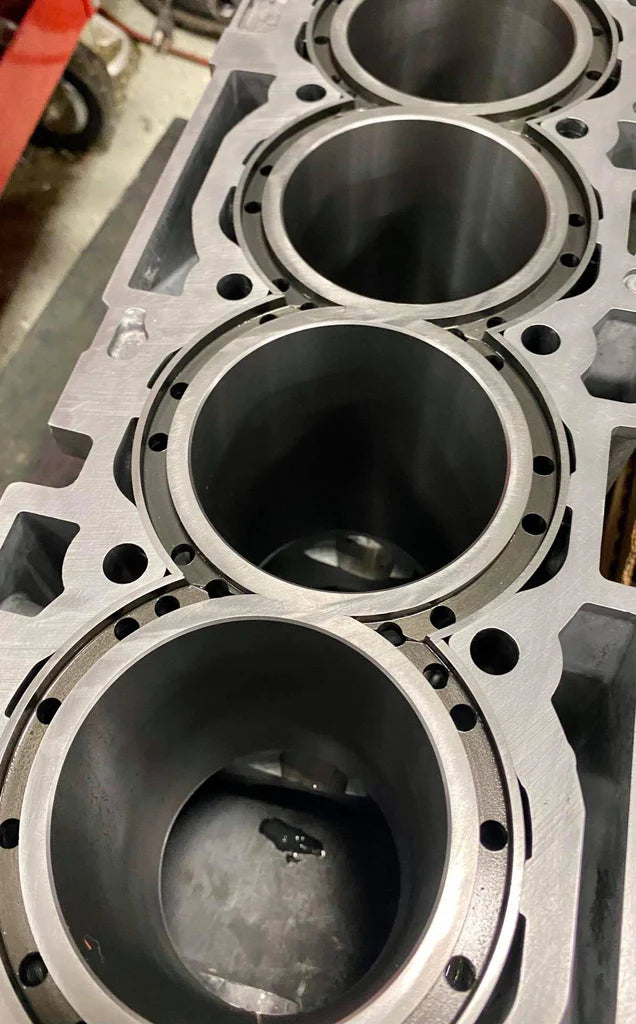

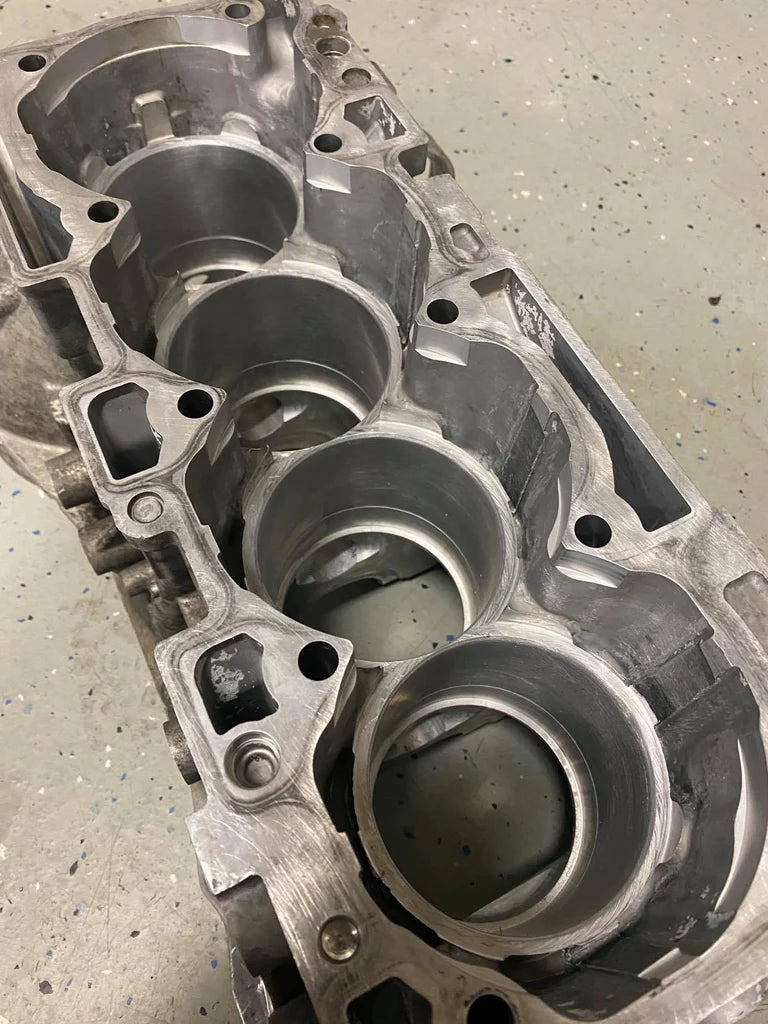

• Sleeve install and machine work.
• CNC Mill deck surface.
• CNC bore cylinders to size.
• Torque plate cylinder hone to piston size / spec.

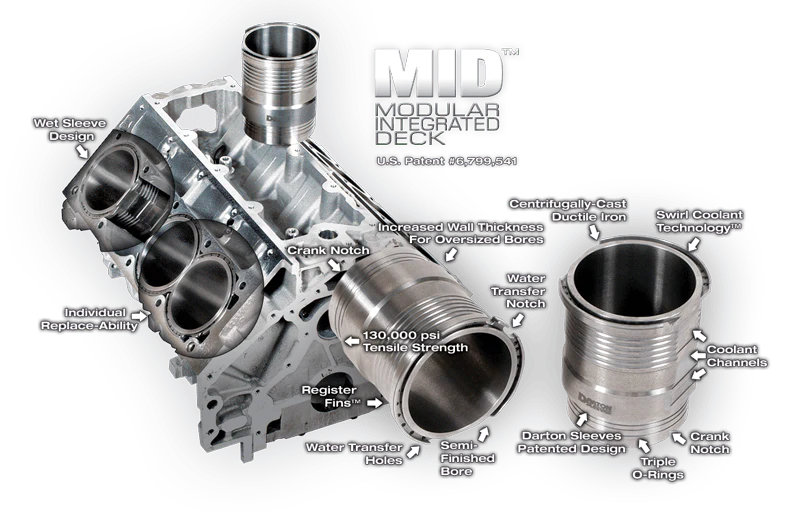

WHAT ARE DARTON MID SLEEVES ?

The Darton MID™ Sleeve Kit is available for many series of 4, 6, and 8 cylinder import and domestic engines and provides for maximum bore sizes and boost potential. The benefits of our MID™ series kits are:

• Cast iron performance in an aluminum block
• Improved block integral strength
• Improved cooling
• Kits can be installed by your local machine shop
• “Wet sleeve” replaceability
• Full installation manual available on website
• Increased horsepower output potential
• High boost and horsepower potential
• Superior oil and compression control
• Superior cylinder sealing and ring wear
• Street or strip application
• Bulletproof Darton ductile iron
• 130,000-psi tensile strength
