DBA 2017+ HONDA CIVIC TYPE R FK8 REAR SLOTTED 4000 SERIES ROTOR

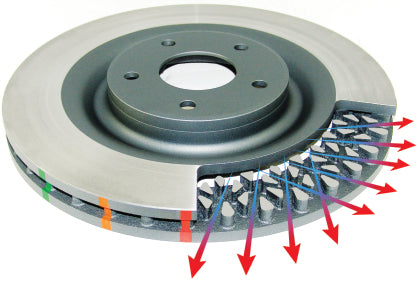

4000 Series disc brake rotors are a direct replacement single-piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Cast from a high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again. Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30 increase in surface area and 20 improvements in cooling efficiency (as compared to a traditional straight vane design)

NOTE: GENERIC IMAGE. ACTUAL PRODUCT WILL VARY.  PRICE PER ROTOR

APPLICATION

• Honda Civic Type-R [FK8] (2017, 2018, 2019, 2020, 2021)

FEATURES

• Symmetrical slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
• Painted non-friction areas to prevent rust and enhance the appearance
• Symmetrical slotting and/or drilling for universal left/right use
• Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability
• Centre split-core castings for increased heat transfer and thermal efficiency
• CBN (Cubic Boron Nitride) machine turned finish, minimizing disc thickness variation and the potential for pad “knock” and resulting in premature wear

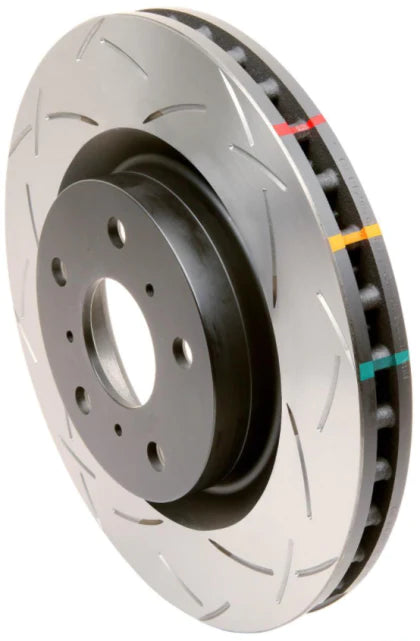

• Paint markings change color at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue
• The formulation allows for optimal interaction with DBA’s thermal stability profiling (TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods

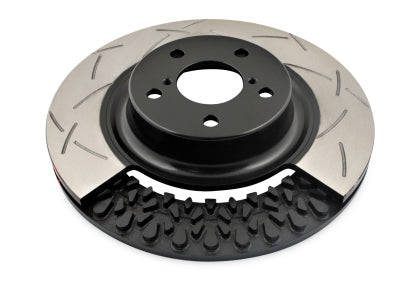

• Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life
