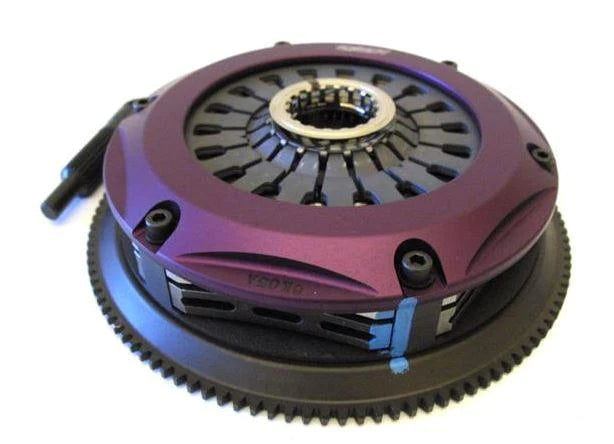

EXEDY Twin Cerametallic Clutch Kit for Evo X
EXEDY Twin Cerametallic Clutch Kit for Evo X
Regular price
$2,179.28
Regular price
Sale price
$2,179.28
Unit price
/
per
The EXEDY Twin Cerametallic Clutch Kit for the Evo X models is a great clutch if you are both a drag racer and drive your car on the street. The pedal is firm and easy to engage making it one of the most recommended street/race clutches out there! The SD version is good to 450 WHP and the HD is designed to handle more launches and good to 550.
Vehicle Fitment:
• 2008-2015 CZ4A Evolution X
Why do I need a triple plate clutch?
Multi plate clutch kits (Twin & Triple Disc) simply put have more than one clutch disc. The stock clutch comes with one disc and by having two or three discs, you essentially double or triple the surface area to be clamped. If you are like most Evo owners, you have probably doubled or tripled your power... so you need to compensate with a more powerful clutch. There will also be intermediate plates between the discs and especially with the Triple kits, when you push in the clutch pedal, you'll hear those plates rattling around free. That's totally normal and fun to mess with your friends.
What's the difference between the Exedy SD and HD?
The Exedy twin clutch comes with two options - HD or SD. The difference lies in the pressure plates. SD is the "Standard Duty" and can handle up to 450 WHP. HD is the "Heavy Duty" with more clamping force designed for drag racing and launches up to 550 WHP. Both versions have about the same pedal feel.
Features:
• Street, Drag, Road and Rally
• Lightweight Chromoly Steel Flywheel
• Purple Anodized Forged Aluminum Clutch Cover
• Pull-Type Design
• Cerametallic Discs
• SD rated for 450 WHP
• HD rated for 550 WHP
For high-powered applications EXEDY offers Multi plate clutches. These are designed for hot street action as well as drag, road, and rally racing. All of multi plate clutches come with a lightweight chromoly steel flywheel, and the famous purple anodized forged aluminum clutch cover. Depending on the application, both strap drive and lug drive models are available. All have T5001 cerametallic friction materials for extreme heat resistance. The multi plate clutches are rated up to 800+ foot pounds of torque at the flywheel. And come with spring damper or solid discs depending on the application.
Features
- Number of Discs: Twin
- Spring Damper Discs: SPRUNG CENTER DISC
- Push / Pull: PULL TYPE
- Disc Outer Diameter: 200mm
- Spline Teeth / Major Diameter: 23T / 26.4mm
Benefits
- Clamp Load 615 lb/ft
