Forced Performance Green 76HTZ JB Turbo | 02-14 Subaru WRX / 04-21 STI- 60mm small inlet compressor cover, IWG, No coating
Forced Performance Green 76HTZ JB Turbo | 02-14 Subaru WRX / 04-21 STI- 60mm small inlet compressor cover, IWG, No coating

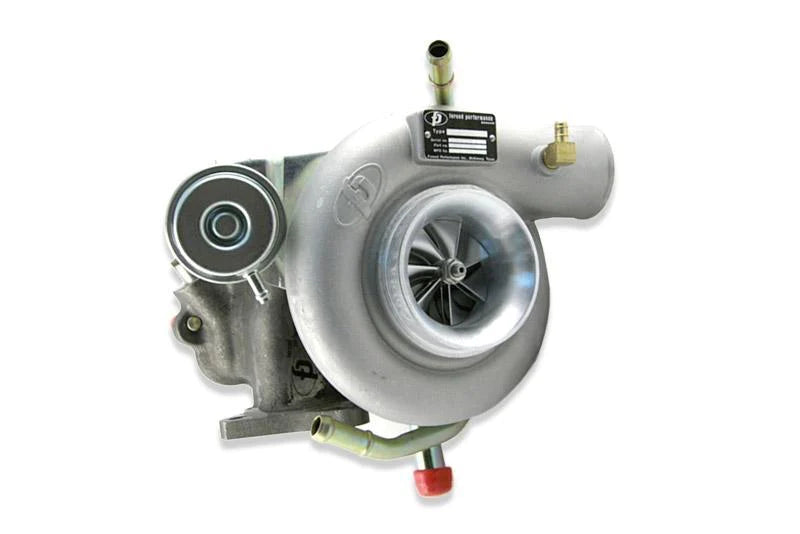

02-14 WRX / 04-21 STI Green HTZ Turbo by Forced Performance
The FP Green™ turbocharger for the Subaru WRX/STi features the 76 HTZ™ compressor section with your choice of 60MM small inlet or the 84MM Flow Advancement Port™ compressor cover coupled to the 8cm2 turbine housing. The FP Green™ flows 61LB a minute and is capable of producing upwards of 500WHP.
In the past we have sold two different types of oil lines. They were known as Type 1 or Type 2, and it was too easy to get confused as to the type needed due to various model differences across the years. To solve this problem, we developed a new oil feed line that includes the parts for both Type 1 and Type 2 cars. The installation instructions below will show which parts to use based on which type of car you have, which is why we are still using the Type 1 and 2 designators.
- Type 1 - Type 1 instructions are to be used if the oil feed location off the back of the head only feeds the turbo. If you have that type of oil line you will use the Type 1 instructions. This was formerly known as the non-AVCS line.
- Type 2 - Type 2 instructions are to be used if the oil feed location off the head splits and feeds the turbo and the AVCS solenoid. If you have that type of oil line you will use Type 2 instructions. This was formerly known as the AVCS Line
Features

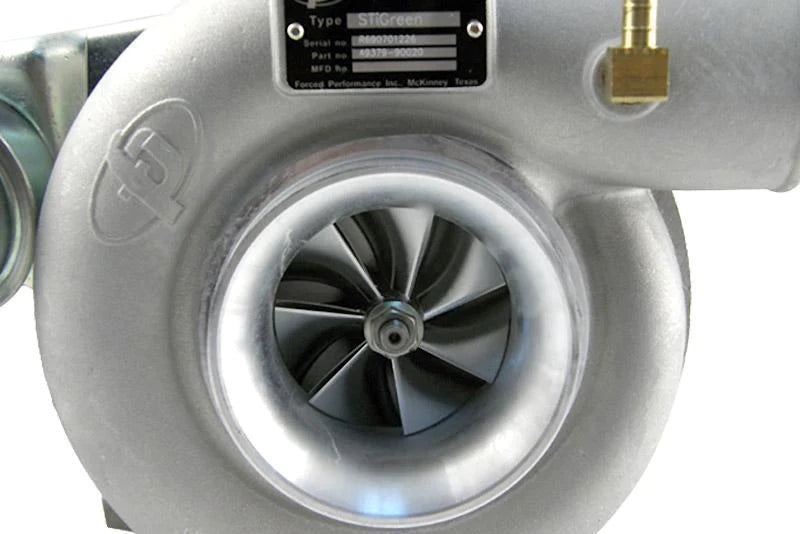

- Compressor wheel - 76HTZ
- Flow rating - 61LB per minute
- CW Measurements - 54.8MM Inducer / 76MM Exducer
- TW Measurements - 67.3MM Inducer / 58.8MM Exducer
- Compressor Housing - 60MM Small Inlet or 84MM FAP Cover

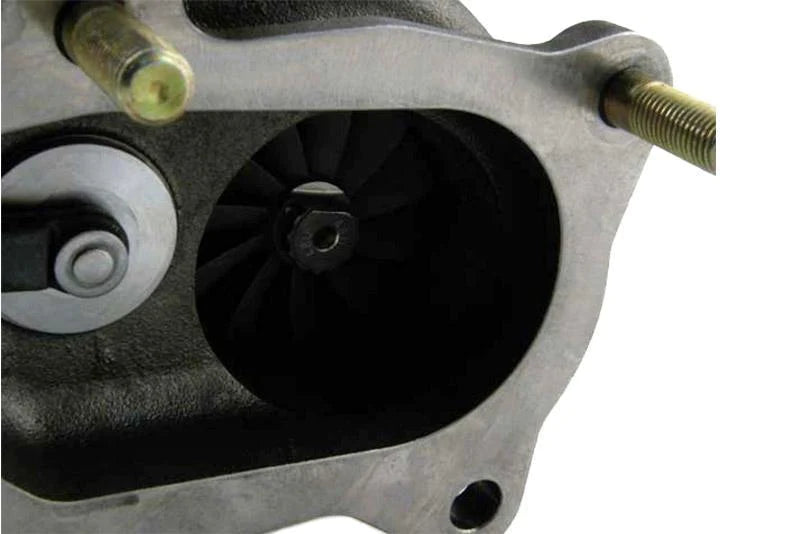

- Turbine Housing - FP 8CM Subaru Turbine Housing
- CHRA - FP Journal Bearing
- Oil Line - Included
Please Note: 84MM FAP Cover Requires TGV Delete to fit in stock location.
