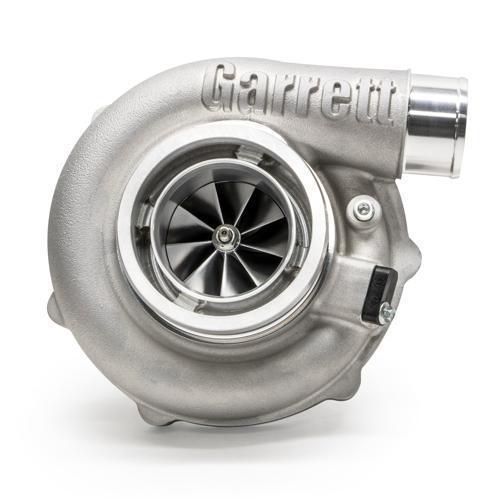

Garrett G Series G30-900 Standard Rotation 550-900 HP Super Core

Garrett G Series G30-900 Super Core - 550-900 HP - Standard Rotation - No Turbine Housing

G Series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero offer enthusiasts a wide range of performance boosting solutions for 2.0L - 8.0L engine platforms. Standard and reverse rotation options are offered with a variety of turbine housing configurations making it easy to select the right turbocharger for your application.

Garrett® G Series Turbine Wheel: By incorporating the latest and advanced ULTRA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimagineable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.

Garrett® G Series Compressor Wheel: Forged fully-machined compressor wheel and new aerodynamics design increases maximum horsepower output, up to +30%. The G-Series aero design not only increases peak flow but higher power levels within a large operating RPM range.

Features

• Evolutionary Ultra High Flow G-Series Turbine Wheel
• Advanced aerodynamics G Series Compressor Wheel
• Fully machined speed sensor and pressure ports
• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Ball Bearing CHRA Rotating Assembly
• Standard Rotation (spins clockwise)
• Mar-M turbine wheel material rated up to 1050° C | 1922° F
• The Results: +20% More Horsepower & Quicker Spool!

Specifications

• Compressor Wheel Inducer: 62mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84

Please Note: This is a G30-900 Super Core. It is a turbocharger without the turbine housing.
