GReddy PRO Surge Tank Kit | 1993-2002 Toyota Supra 2JZ-GTE

93-02 Toyota Supra 2JZ-GTE PRO Surge Tank Kit by GReddy

Designed specifically for custom applications with 2JZ engine transplants, the GReddy 2JZ Pro Surge Tank Kit offers the versatility to best match the throttle-body inlet angle and vacuum/air ports for your engine bay.

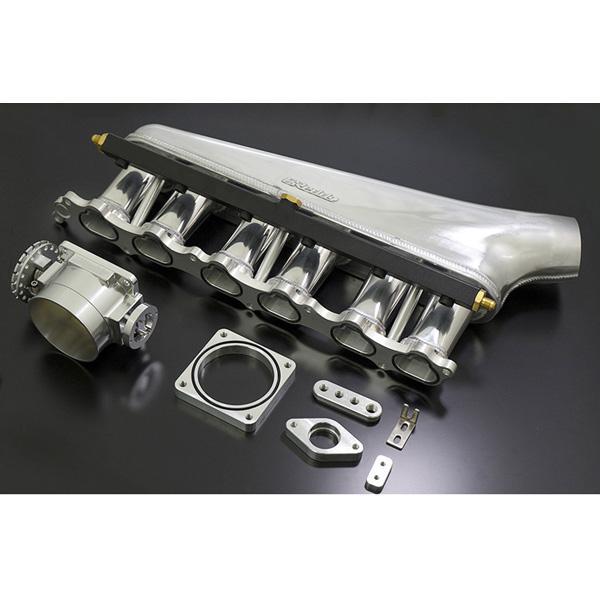

This Pro kit includes 4.0l tank capacity with a large 90mm throttle-body, and top feed fuel rail, and necessary weld-on flanges. For additional rigidity during high boost applications, it uses thick 3mm formed metal tank that is welded to a precision machined, grooved base, with six individual, internal velocity-stacks.

Also pre-welded are the tuned primary runners and intake manifold flange with fuel injector ports. Another key feature is the unique, purpose-built fuel-resist, ring-type gaskets that seal the manifold to the head.

Features

• Collector tank capacity 4.02 l (normal ratio 200%)
• Surge tank, base plate and runners pre-welded
• Tuned internal velocity stacks on each runner
• Primary runner length 130㎜, OD 14.0mm ID 13.0mm

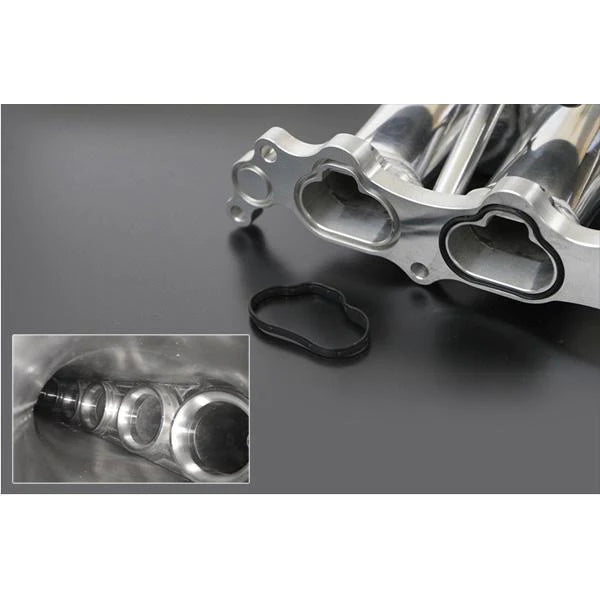

• Specially designed and manufactured O-ring style gasket provide superior manifold to head sealing for each runner

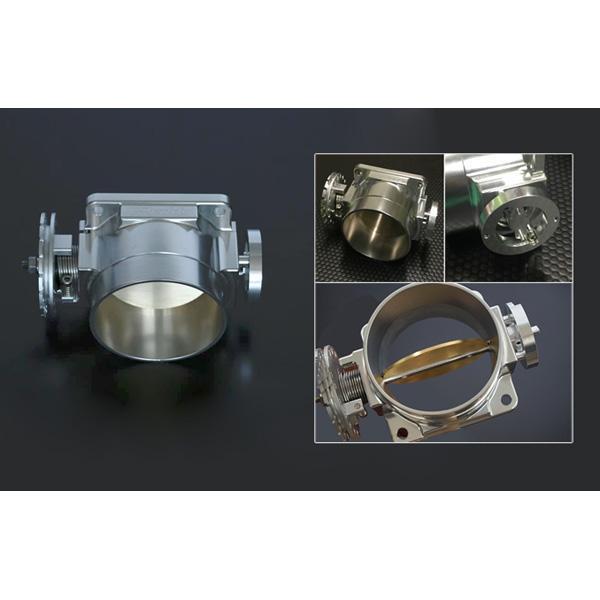

• Throttle-body hose diameter 100mm, internal butterfly diameter 90mm with low-profile throttle shaft
• Fuel Delivery tube for 14mm top feed injector
• Compatible with OEM factory Idler Control Valve and TPS Throttle Position Sensor

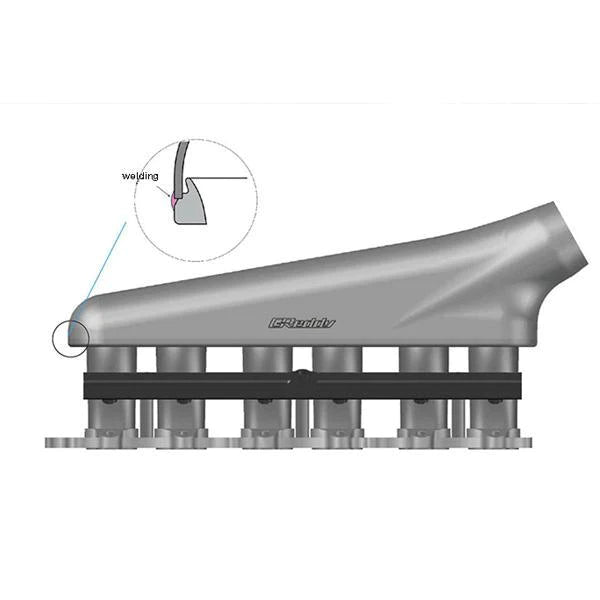

Please Note: Welding required to attach throttle body flange, throttle cable mount and air port flanges.
