Haltech IC-7 Color Display Dash

Haltech IC-7 Color Display Dash

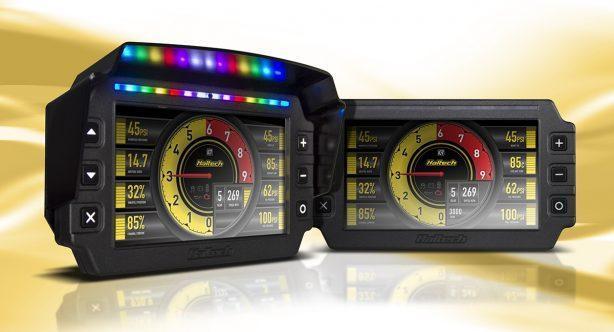

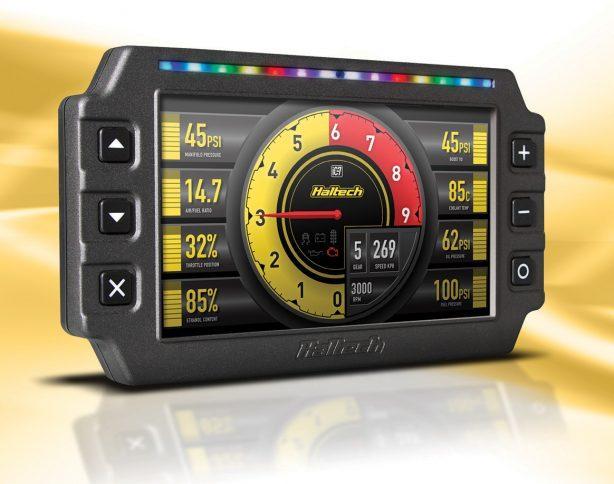

Designed and manufactured in Australia with motoring enthusiasts in mind, the IC-7 offers market-leading features in a unique, state-of-the-art package. Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the IC-7 connects directly to all current Haltech ECUs via a CAN network. The IC-7 can also connect directly (via CAN) to most late model vehicles using the factory OBD-II port.

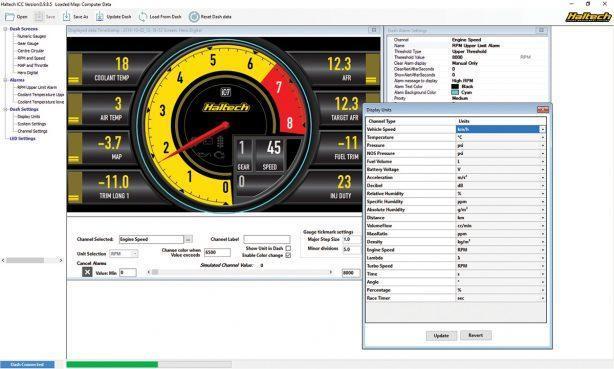

IC-7 Software

The IC-7 is configured using a brand new, intuitive software. With this software you can change various aspects of the dash behavior including:

• Ranges of channels. Eg. the maximum RPM on a needle style tacho or a bar graph
• Red ranges for channels. Eg. when a numeric display changes to red, red zone on a tacho
• Display units. Eg. metric or imperial, Lambda or AFR
• The channel to be displayed at each location on the screen
• The connection method. Eg. Haltech CAN or OBD-II
• Shift light RPM points and colors
• Alarm thresholds, color for on-screen display and shift lights, manual or auto reset methods

Features

• User adjustable brightness control with automatic dimming
• User configurable channels, units and alarms
• Configuration via Haltech IC-7 software and USB cable

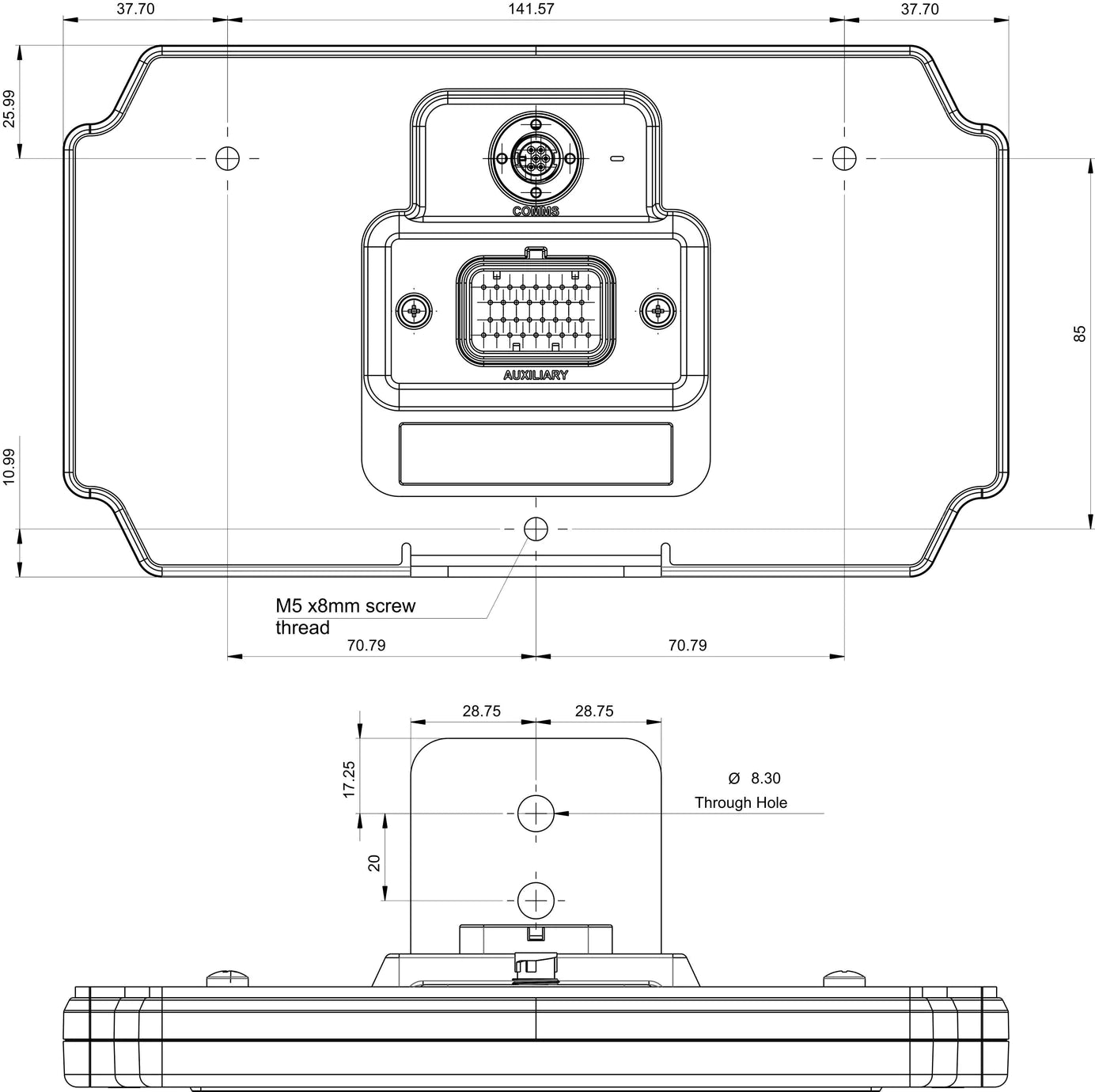

• Screen size: 7in. Case size: 217 x 122mm (8.5″ x 4.8″)

Benefits

• Ideal replacement for individual analogue gauge clusters
• Easy to install and configure
• 14 programmable, seven color shift light LEDs
• Controlled via easily accessible, face-mounted control buttons
• IP66 water resistance rating
