Injector Dynamics ID1700x Fuel Injectors | 2008-2015 Mitsubishi Evo X

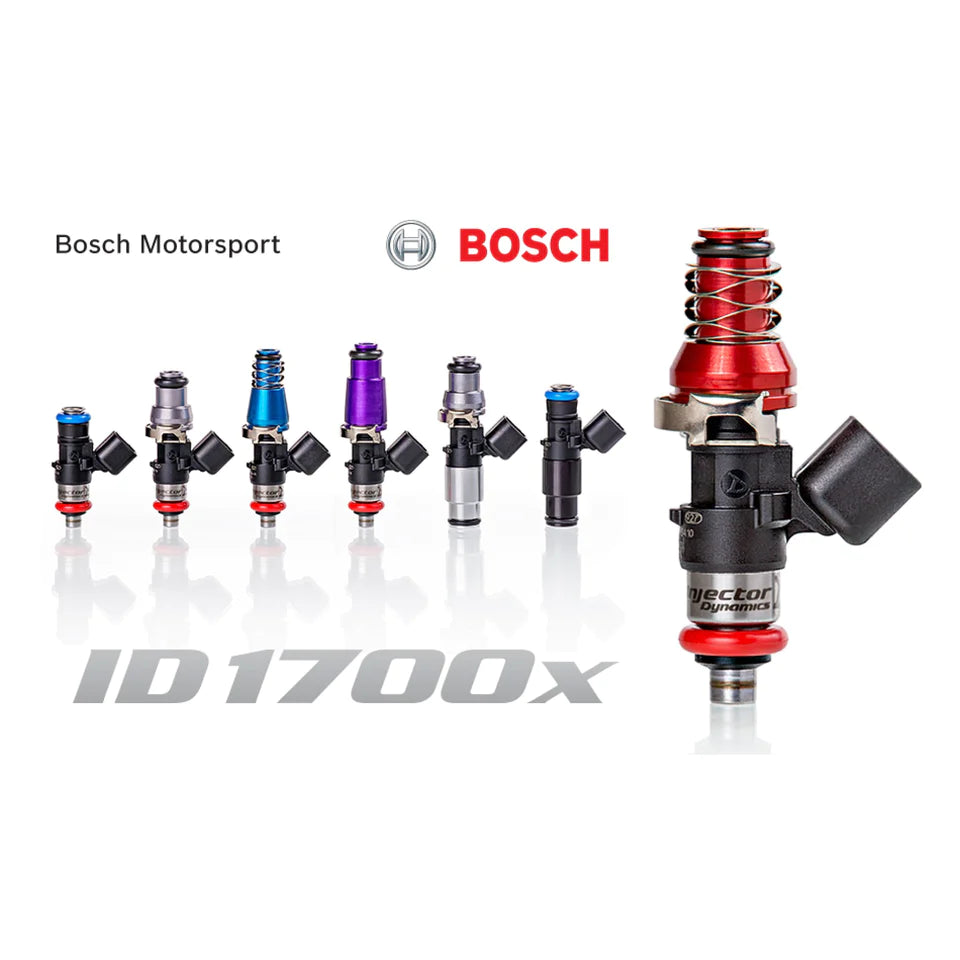

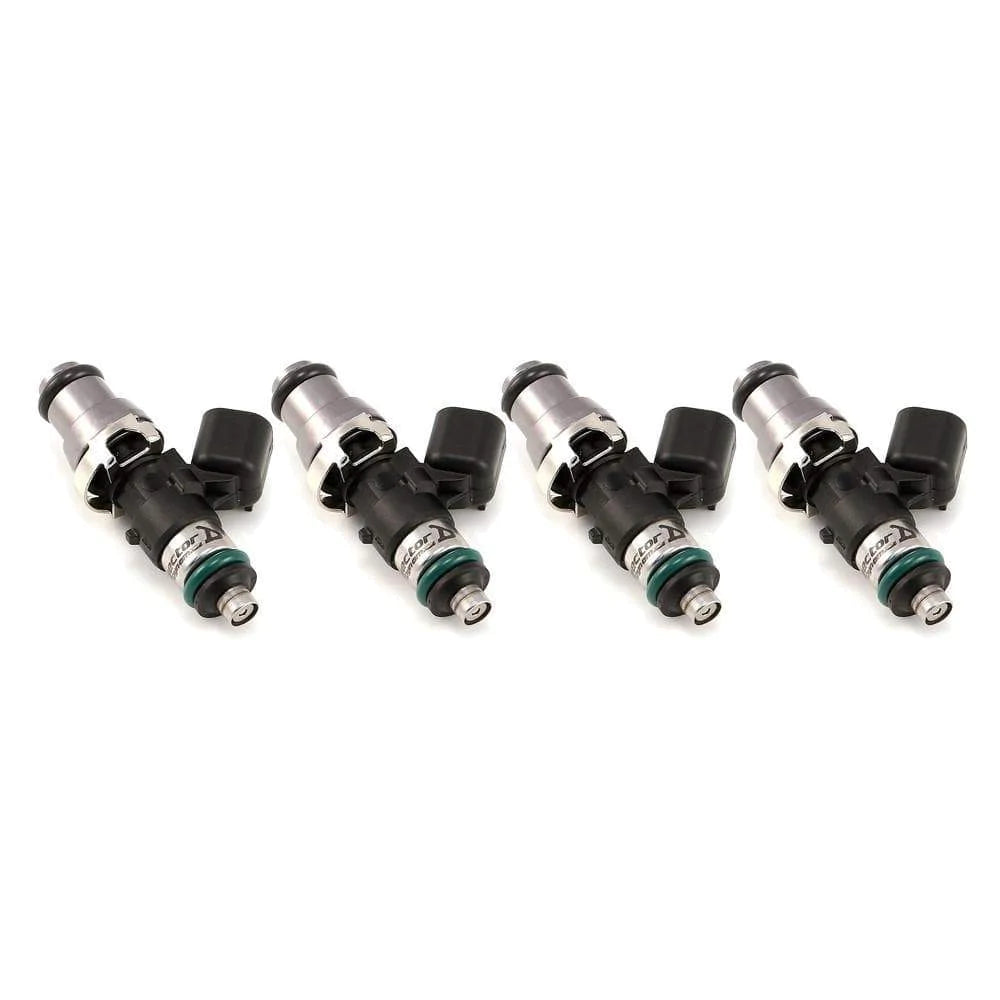

08-15 Mitsubishi Evo X ID1700x Fuel Injectors by Injector Dynamics

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.

A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

Features

• Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
• Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
• Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
• Electrical Connector – USCAR

Benefits

• Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
• Does not require extended linearity at low flow rates
• Narrow Spray Pattern - minimal wall wetting promotes quick response and smooth running.
• Both Dodge Neon and Caliber SRT-4 injectors are direct fit plug and plug, no additional adapter needed. All others will require a set of either PnP adapter 91.2 or 91.3 in order to plug and play.
• The ID1700 will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
