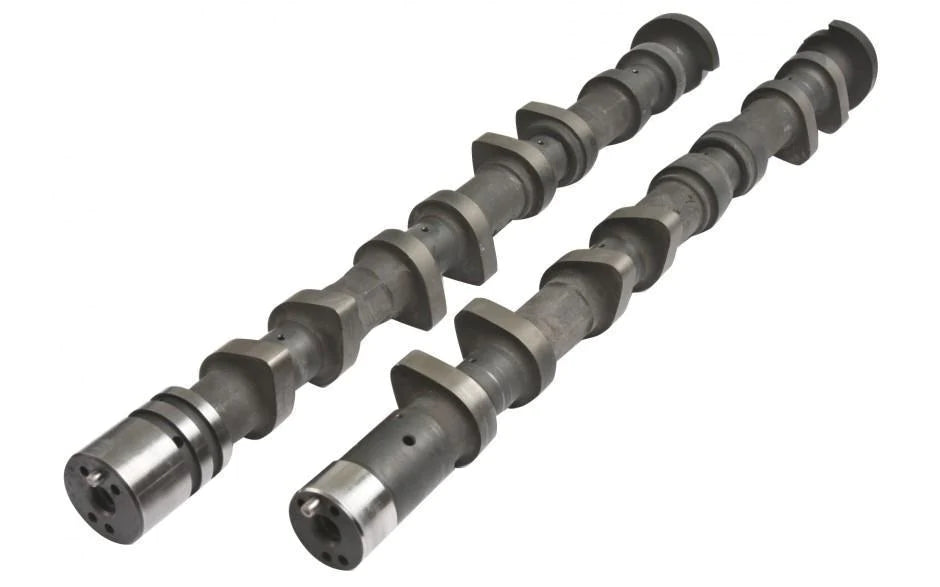

Kelford Stage 2 Camsahfts 270/262 Duration 11.00mm/10.00mm Lift Mitsubishi Evo X 4B11T

Mitsubishi Camshaft: 4B11 EVO X

Stage 2 high performance cams. These suit 350-550HP engine builds, up to 32lbs boost and 9000 RPM with the Kelford valve spring. Recommend to use KVS11 valve springs.

Features

• Valve Clearance: Intake: 0.30mm Set COLD at the CAM
• Exhaust: 0.35mm Set COLD at the CAM
• Cam Lift: Intake: 11.30mm Exhaust: 10.35mm
• Rocker Ratio: Intake: 1 Exhaust: 1
• Nett Valve Lift: Intake: 11.00mm Exhaust: 10.00mm
• Advertised Duration @ 0.10mm Intake: 270 Exhaust: 262
• Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 220
• Timing @ 1.00mm VALVE LIFT IVO: EVO:
• Suggested Centre Lines: Intake: VARI Exhaust: VARI

Benefits

• Supports up to 550hp and 32lbs of Boost (with KVS11 springs)
