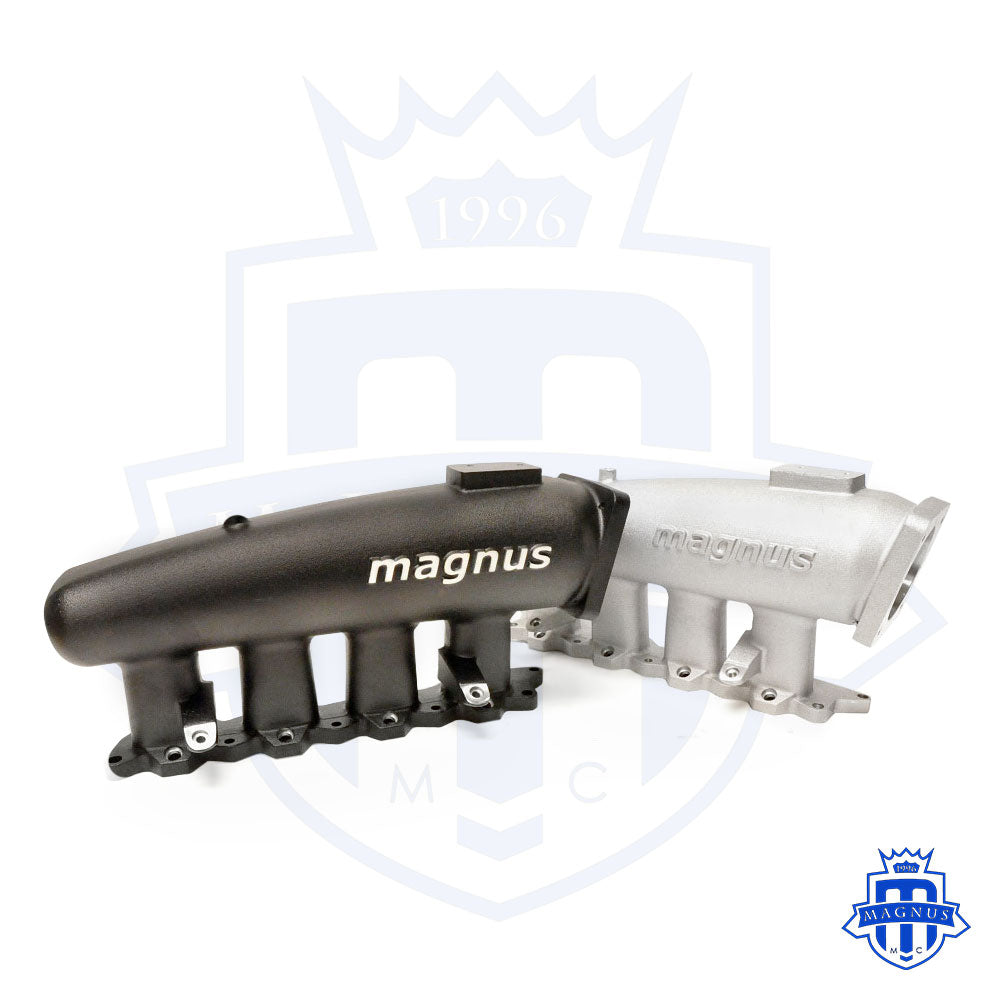

Magnus V5 Cast Intake Manifold for Evo 4-9 4G63T Black 8 Injectors Ford 90mm Throttle Body Flange

Magnus V5 Cast Intake Manifold Wrinkle Black, 8 Injector bosses, Ford 90mm Throttle Body Flange, and includes secondary fuel rail for Evo 4-9 4G63T

History & Development

Over 15 years ago, Magnus Motorsports released its first Sheet Metal Intake Manifold into the market place and it quickly became the standard within the Mitsubishi Racing community. 10 years in we released the next big thing the Magnus Motorsports V5 Cast Aluminum EVO Intake Manifold. After two years of engineering and design the result had payed off with its performance results.

We designed this one from a fresh sheet of paper. Out of over a dozen prototypes, endless testing and perfecting, the Magnus Cast Intake Manifold was born. We applied our years of experience from crafting thousands of sheet metal intakes and once again have raised the bar for power and quick response. By applying a unique design and a massive 5L plenum, this cast manifold means big power and big power sooner!

The Design & The Results

Cast in A356 Aluminum with a wall thickness of 3/16″; the Plenum shape features a varying contoured tapered profile at a volume of 5 liters. The runners themselves are completely revolutionary in their design; featuring an integrated velocity stack that gradually transitions into the head port profile. It was designed entirely against the shape of the original cylinder head port, taking advantage of the 10° port entry of the EVO head and maintaining uninterrupted laminar flow. The Magnus Cast Intake Manifold will work with throttle bodies from stock right up to 100mm and have seen consistent gains from 30 awHp to 52 awHp with varying setups. Transient boost response is exceptional and it can bolt together in a stock location if required while still being able to be used on a full blown race application.

Features

• 2 years of research and development
• Cast from A356-T6 Aluminum Alloy
• High quality casting gives a superior surface finish
• Enhanced flow dynamics utilizing CAD Modeling & CFD simulation
• Flowbenched and dynamically tested
• Dynotested proven up to 50 HP
• Ability to flow 100 lb/min (1000 HP) of air at 60PSI while maintaining equal flow distribution
• Can be installed in stock location with clearance for original battery (with adaptor)
• Install kits are optional and can be purchased to include heat barrier gaskets, and adaptor plate to run stock throttle bodies (easily upgradeable). Remote map sensor boss is optional for use with factory ECU’s
• Stock turbo gains up to 40HP
• 15 degree entry to the throttle body facilitates intercooler plumbing
• 8 injector setup.
• Fits factory fuel rail or Magnus high flow fuel rails

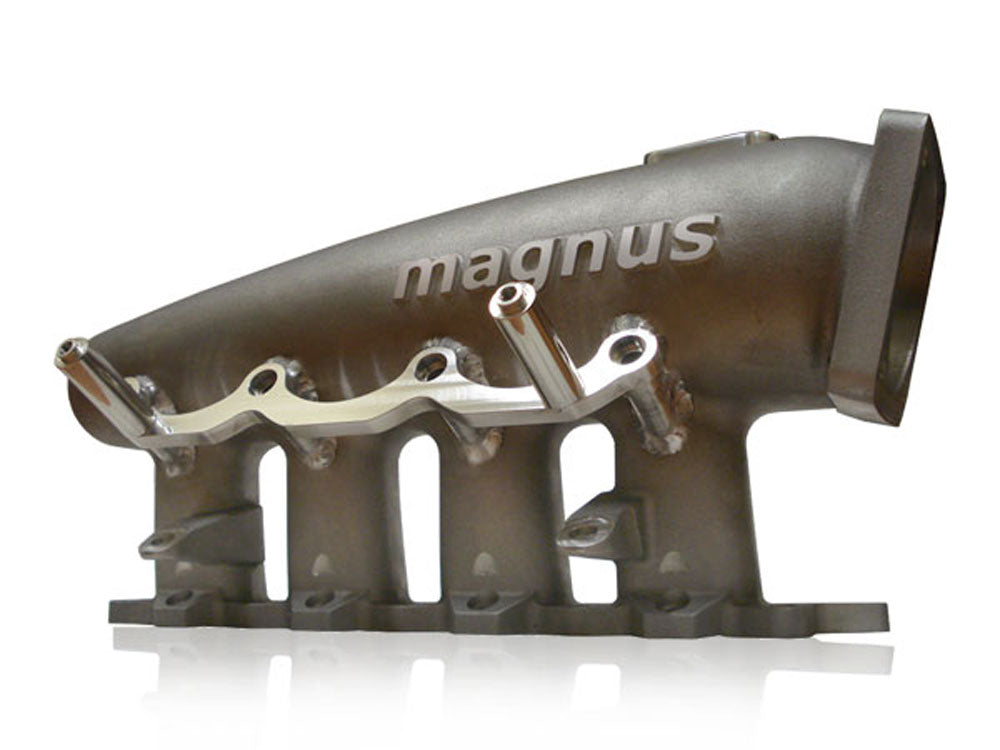

• Includes secondary fuel rail MMCFUL1032
• 5L plenum with contoured velocity stacks molded into the floor for huge top end and minimal turbulence
• Magnus Quality and Lifetime warranty

Applications

• EVO IV to IX
