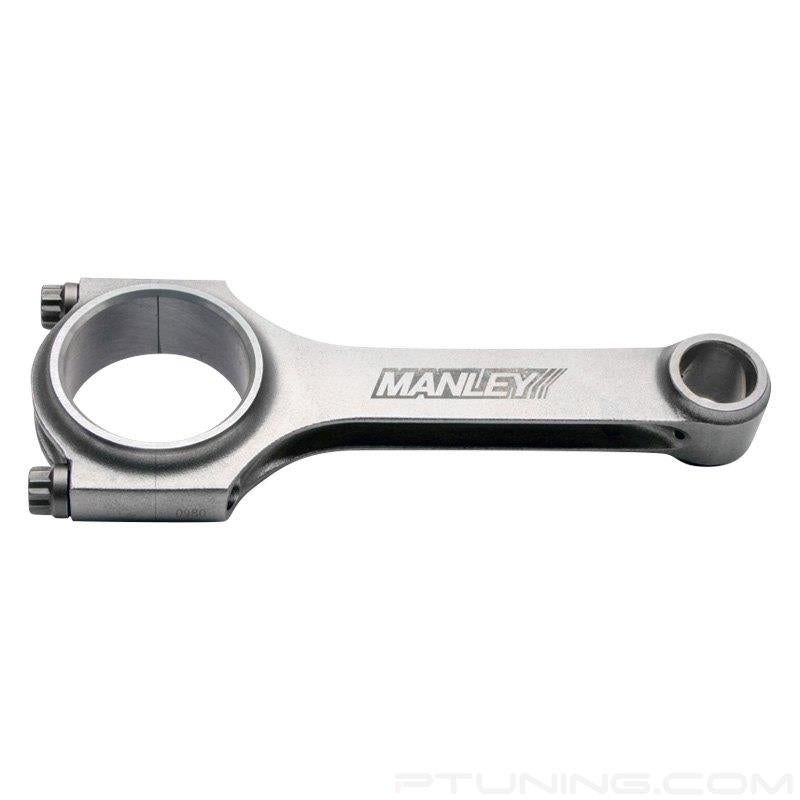

Manley 14028-6 H-Beam Rods NISSAN SKYLINE RB26
Manley 14028-6 H-Beam Rods NISSAN SKYLINE RB26
Regular price
$658.01
Regular price
Sale price
$658.01
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Application: Nissan RB25DE(T), RB26DETT (Stock 21mm pin)
Center to Center: 4.783"
Big End Bore: 2.008"
Big End Width: .857"
Pin Diameter: .827" (21mm)
Pin Bore: .8281"
Gram Weight: 473
Center to Center: 4.783"
Big End Bore: 2.008"
Big End Width: .857"
Pin Diameter: .827" (21mm)
Pin Bore: .8281"
Gram Weight: 473
- Manufactured from 4340 forgings
- Heat treated, stress relieved, shot peened and 100% individually magnafluxed
- Weight matched sets +1.5 grams
- Cap fasteners are 3/8″ ARP 2000 for the “H″ Beam and 3/8″ ARP Custom Age 625+ for the H-Plus, except part number 14017 which is supplied with 7/16″ ARP 8740 for the “H″-Beam and 7/16″ ARP 2000 for the H-Plus
- Flywheel horsepower range for these rods in a 4 cylinder application is 600+ for the “H″-Beam and 800+ for the H-Plus and for a 6 cylinder application the range is 800+ for the “H″-Beam and 1000+ for the H-Plus
