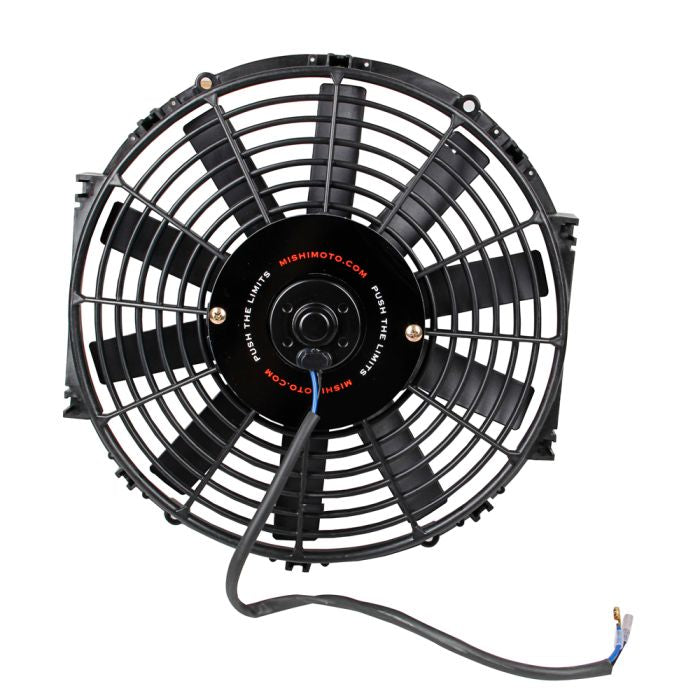

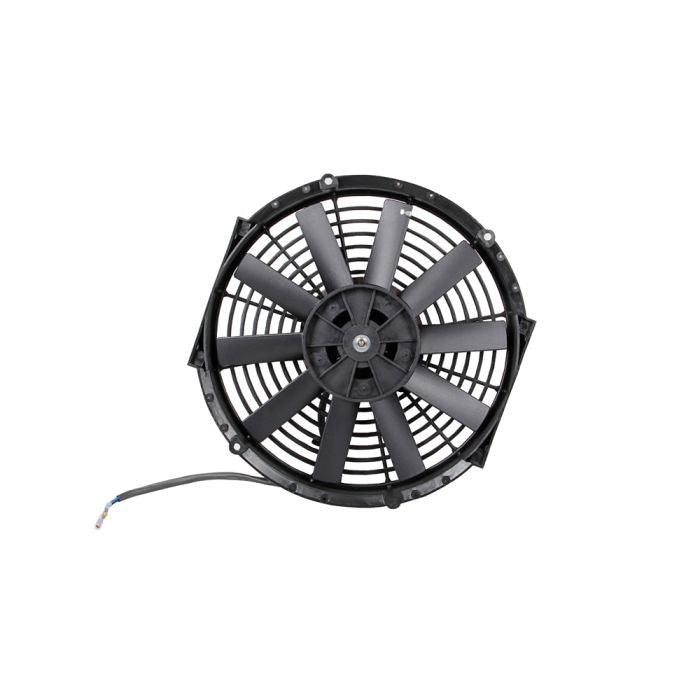

Mishimoto 12" Black Slim Electric Fan Universal

This curved blade fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto Universal Fan Mount Kit (P/N: MMFAN-MOUNT). Mishimoto recommends the use of a fan shroud and our fan mounting kit in addition to the included mounting tabs for a secure installation.

Features:

• High-flow fan provides 1150 cfm of airflow
• Universal fitment
• Compact design with a diameter of 12 and an overall thickness of only 2.5 provides increased engine bay space
• Easily reversible for use as a pusher or puller fan
• Mishimoto Lifetime Warranty

Product Specs:

• Type of Ends: Female Snap-Plug Terminal
• Material: Plastic
• Air Temp While Tested: 72°F
• Color: BlackBlueRed
• Normal Current (amps): 7.6
• Volts: 12
• Housing Diameter: 12.5
• Blade Diameter: 280
• Overall Thickness: 2.5
• Tech Specs and Sizing: Click here for fan specifications and sizing chart.
• Reverse: True
• Blade Style: Straight
• Inrush Current (amps): 12.7
• # of Blades: 10
• Fan RPM: 2000
• Fan Diameter: 12
• Overall Depth: 63.5
• CFM: 1150
• Kit Includes: (1) Mishimoto Fan
  (5) Mounting Tabs
  Mishimoto Lifetime Warranty
