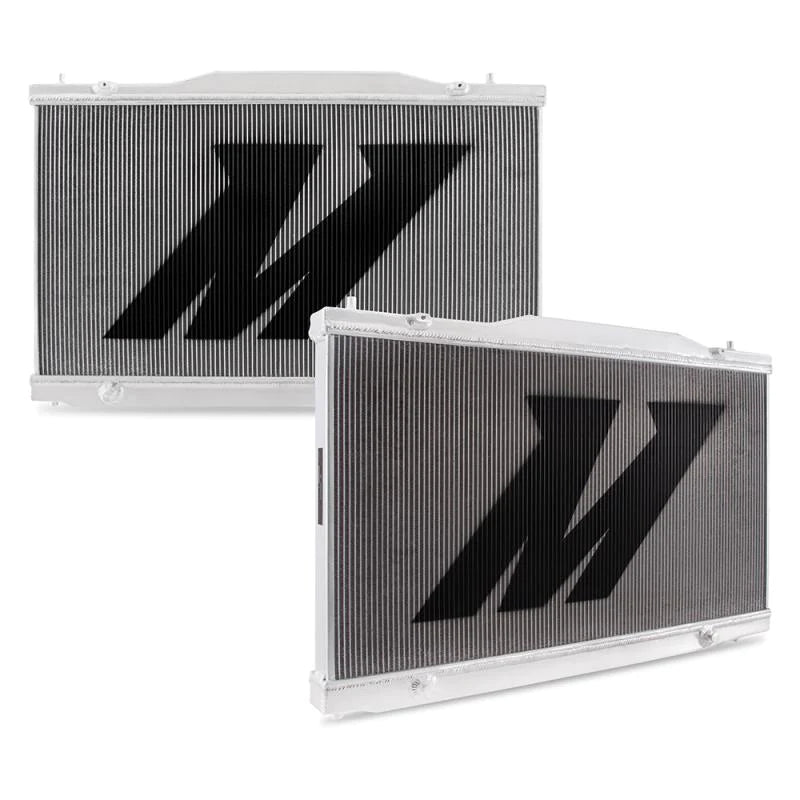

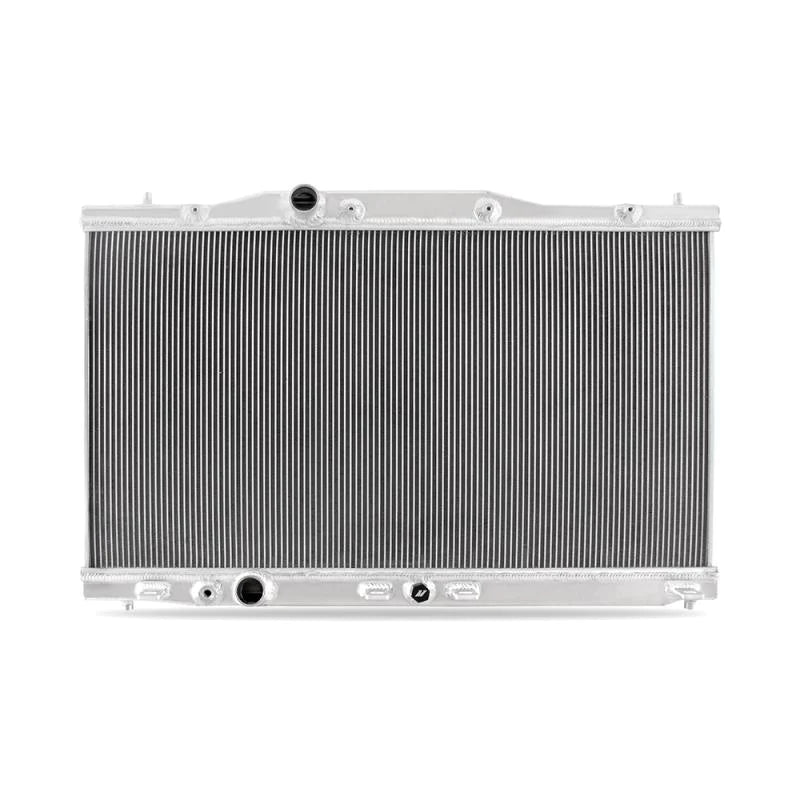

Mishimoto Performance Radiator Honda Civic Type R 2017-2021
Mishimoto Performance Radiator Honda Civic Type R 2017-2021
Give your CTR the cooling power it desperately needs with the Mishimoto 2017-2021 Honda Civic Type R Performance Aluminum Radiator. Honda's top-rung Civic took the hot-hatchback world by storm, but there's still one thing that's holding it back - heat. The K20C1 is quite the powerhouse in the Civic, but the stock cooling system just can't keep up. Mishimoto is here with a more durable and efficient cooling solution for your FK8. For starters, we ditched the skinny core and plastic end tanks for a full aluminum, TIG-welded construction, sure to stand up to abuse on the street, track or drag strip. Our design also features a 1.57" thick core, increasing core volume by 48% and external fin surface area by 102% for maximum heat dissipation properties. Our core also incorporates strutted tubes for maximum durability. The 2017-2021 Honda Civic Type R Performance Aluminum Radiator is available in a polished finish, and includes our magnetic drain plug to collect any metallic debris in your cooling system, This radiator is covered under the Mishimoto Lifetime Warranty for a worry-free installation.
Features:
- Direct fit for the 2017-2021 Honda Civic Type R
- 48% increase in core volume
- 102% increase in fin surface area
- Features a 1.57 thick, efficiently brazed aluminum core
- Full aluminum construction including durable, TIG-welded end tanks
- Strutted tubes for maximum durability
- Increased fluid capacity for optimal heat dissipation
- Efficient temperature regulation for both stock and modified vehicles
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
- (1) Aluminum Radiator
- (1) Magnetic Drain Plug
- Mishimoto Lifetime Warranty
- Material: Aluminum
- Overall Height: 18.1
- Drain Plug Thread Size: (M12) x 1.5
- Overall Length: 27.9
- Rows: 1
- Dual Pass: False
- Overall Width: 4
- Core Length: 26.7
- Core Height: 14.8
- Core Thickness: 1.57
-
Engine Codes
- K20C1
-
Chassis Codes
- FK8
-
Fits
- 2017-2021 Honda Civic Type R
