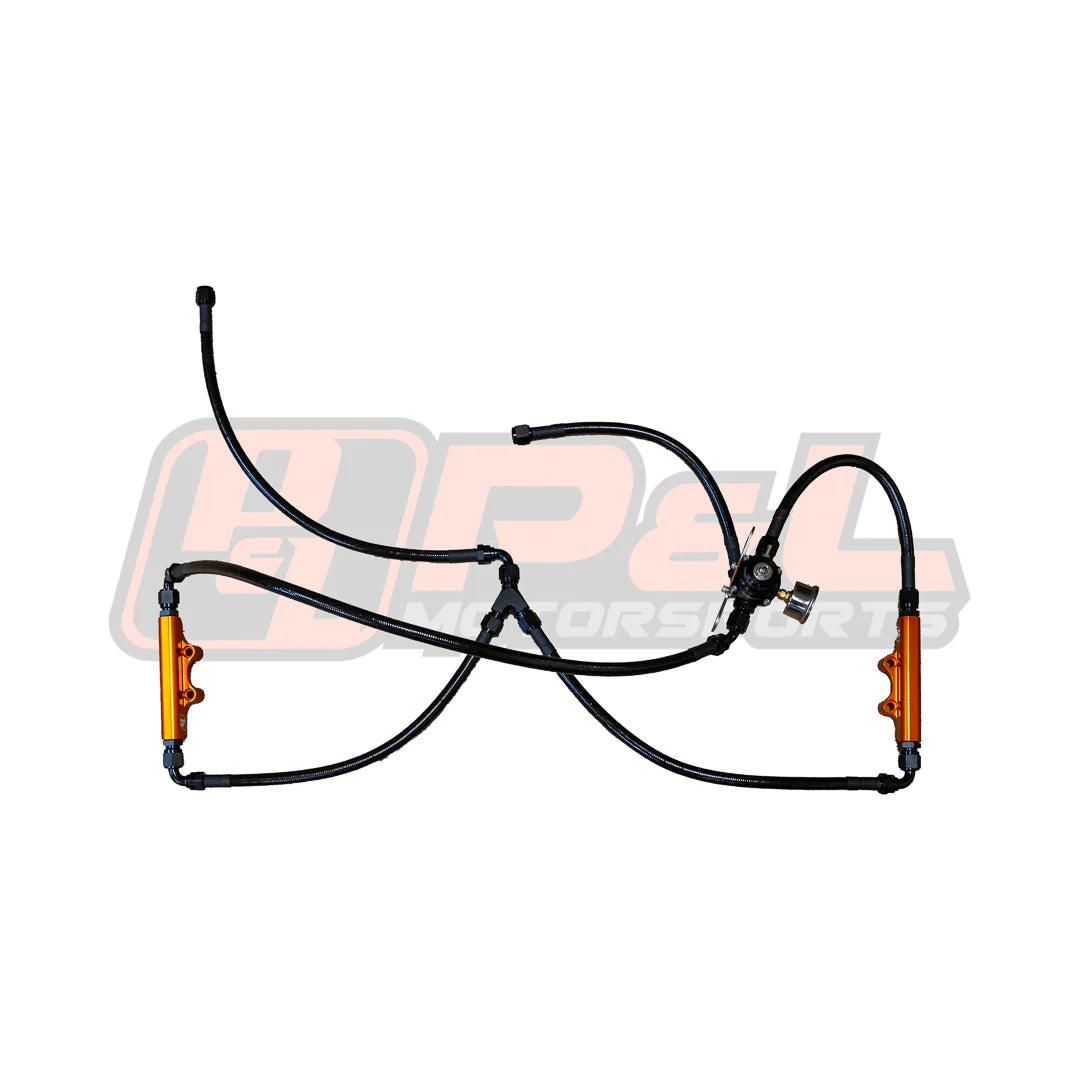

P&L Motorsports Subaru Top Feed Fuel Rail and Line Kit

P&L Motorsports Subaru Top Feed Fuel Rail and Line Kit

$918.95
$918.95
Sale Sold out
Shipping calculated at checkout.
LINE SIZE:
FUEL RAIL COLOR
FUEL LINES:
P&L Motorsports Subaru Top Feed Fuel Rail and Line Kit

The P&L Motorsports Subaru top feed fuel rail and line kit are designed to be a plug-and-play system for all top feed Subaru engines in the WRX, STI, LGT, and FXT. If you already have injectors and a fuel pump, adding the P&L Subaru Top Feed Fuel Rail and Fuel Line Kit will complete the entire fuel system. Perfect for e85 usage where higher fuel flow rates are needed to feed the engine. Larger Fuel Lines, AN Fittings, and Adjustable RegulatorThe P&L Motorsports Subaru EJ20/EJ25 Fuel Line Kit and Regulator can handle the most demanding high-flow EFI systems and is capable of supporting applications up to 1000 HP. Manufactured with smooth bore PTFE flexible lines and -6 or -8 AN swivel fittings and you have an all-in-one solution for your fueling needs.

High-quality materials are the key to an effective and reliable fuel system, and the P&L Motorsports Subaru EJ20/EJ25 Fuel Line Kit and Regulator takes this into account by incorporating flexible PTFE lined hosing that is not only kink, heat, and vibration resistant, but ethanol resistant as well. This makes the P&L Fuel Line and Regulator Kit perfect for your Subaru with an e85 conversion.

Included in the kit is an adjustable rising rate Aeromotive fuel pressure regulator, and fuel pressure gauge to set and monitor your base and static fuel pressures. This allows for more precise control over fuel pressure as well as the potential to increase the total fuel delivered to the engine, by way of increasing the pressure, if needed.

Upgraded Fuel Rails for Increased Flow

The P&L Motorsports Subaru EJ Top Feed Fuel Rails are a replacement rail set that allows increased fuel flow to the injectors and through the fuel system as a whole. In addition to increasing flow, the fuel rails allow for AN fittings and lines to be used in the engine bay.

These P&L top feed fuel rails fit directly to the top feed TGV housing on the intake manifold but will require a housing swap for any vehicle which came with side feed TGV housings from the factory. We include a 3/8″ NPT port on the underside of each rail to allow for the addition of a fuel pulse damper or a secondary fuel pressure gauge sensor.

Unlike other fuel rail kits on the market, we include -6 AN fuel line fittings at no additional cost or -8 AN fuel line fittings for a reasonable upgrade price.

Features:

  • Base Pressure Adjustable from 30-70 psi
  • Fuel Pressure Rises on a 1:1 Ratio with Boost
  • PTFE Lined Fuel Lines for Maximum Fuel Compatability
  • Flexible, Kink Resistant, Heat Resistant, Vibration Resistant Housing
  • Ethanol (e85) Safe
  • Quick Connect Fittings for Factory Feed and Return Lines
  • Designed for Optimal Fuel Delivery



Includes:

  • Aeromotive Rising Rate Fuel Pressure Regulator
  • 1/8” NPT Fuel Pressure Gauge
  • CNC Machined Stainless Steel FPR Mounting Bracket
  • -6 or -8 AN Fittings and Smooth Bore PTFE Lines
  • -6 or -8 AN Y Fitting
  • -6 or -8 AN Quick Connect Fittings (qty. 2)
  • One Pair of CNC Machined Top Feed Fuel Rails (Red, Blue, Black, Orange, Yellow, or Silver)
  • Four (4) Fuel Rail Mounting Bolts for Installation
  • Two (2) 3/8″ NPT Plugs
  • Four (4) -6 or -8 AN Line Fittings for Rails



Options:

  • -6 AN Fuel Lines and Fittings, Red Anodized Fuel Rails (PL-SUB303R)
  • –8 AN Fuel Lines and Fittings, Red Anodized Fuel Rails (+$136.50) (PL-SUB304R)
  • -6 AN Fuel Lines and Fittings, Blue Anodized Fuel Rails (PL-SUB303BL)
  • –8 AN Fuel Lines and Fittings, Blue Anodized Fuel Rails (+$136.50) (PL-SUB304BL)
  • -6 AN Fuel Lines and Fittings, Black Anodized Fuel Rails (PL-SUB303B)
  • –8 AN Fuel Lines and Fittings, Black Anodized Fuel Rails (+$136.50) (PL-SUB304B)
  • -6 AN Fuel Lines and Fittings, Orange Anodized Fuel Rails (PL-SUB303O)
  • –8 AN Fuel Lines and Fittings, Orange Anodized Fuel Rails (+$136.50) (PL-SUB304O)
  • -6 AN Fuel Lines and Fittings, Yellow Anodized Fuel Rails (PL-SUB303Y)
  • –8 AN Fuel Lines and Fittings, Yellow Anodized Fuel Rails (+$136.50) (PL-SUB304Y)
  • -6 AN Fuel Lines and Fittings, Silver Anodized Fuel Rails (PL-SUB303S)
  • –8 AN Fuel Lines and Fittings, Silver Anodized Fuel Rails (+$136.50) (PL-SUB304S)

Applications:

  • 02-14 Subaru WRX
  • 07+ Subaru STI
  • 04-06 Subaru STI ((w/ Aftermarket Top Feed TGV Housings)




*Compatible with Top Feed TGV Housings Only*

**-8 AN Fuel Lines will NOT work with factory hardlines
