Perrin Air/Oil Separator | 2008-2014 Subaru WRX and 2008-2019 Subaru WRX STI

2008-2014 Subaru WRX and 2008-2019 Subaru WRX STI with TMIC Air/Oil Separator by Perrin

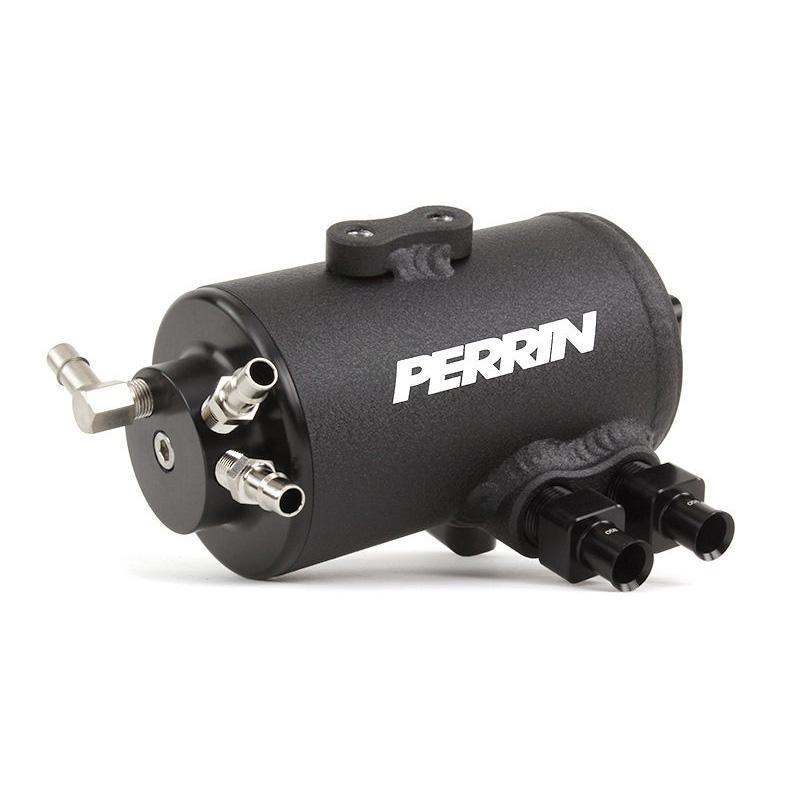

The PERRIN Air Oil Separator is not a catch can. Catch cans capture engine blow-by and stores it in a container, which requires constant attention and removal of oil every few hundred miles. The air oil separator separates the oil from the air, draining it back to the engine, which eliminates the need for constant attention and draining of oil. As oil drains from the bottom of the PERRIN Air Oil Separator, clean oil-free air vents out of the top to rejoin the intake tract.

The PERRIN Air Oil Separator features swirl pot technology and multi-layer baffles. This design forces incoming engine blow-by to move rapidly across the baffles, separating oil from the engine blow-by. Multiple layers of baffles means more surface area to collect more oil, making for a compact and efficient design. Oil entering from the crankcase vents spins counter clockwise through the entire body of the AOS, passing along four walls equaling roughly 50 sq/in of surface area. The multiple baffle walls in our compact design simulate the surface area of an AOS that is 13.5" tall!

The base plate of the the air oil separator is heated by coolant drawn from the engine. The heats the entire air oil separator to the same temperature of the engine blow-by. By keeping the air oil separator the same temperature as the blow-by, water condensation is significantly decreased, allowing oil, air, and water vapor to separate and pass through the body. This vital feature eliminates nearly all the sludge that can build up in the air oil separator body, which is a common problem with catch cans and other air oil separators.

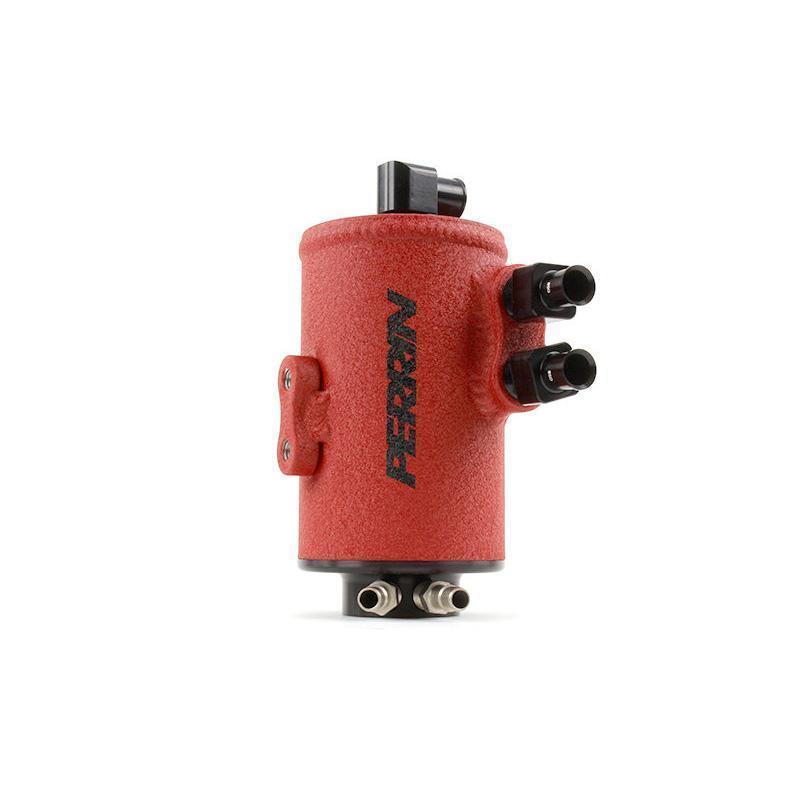

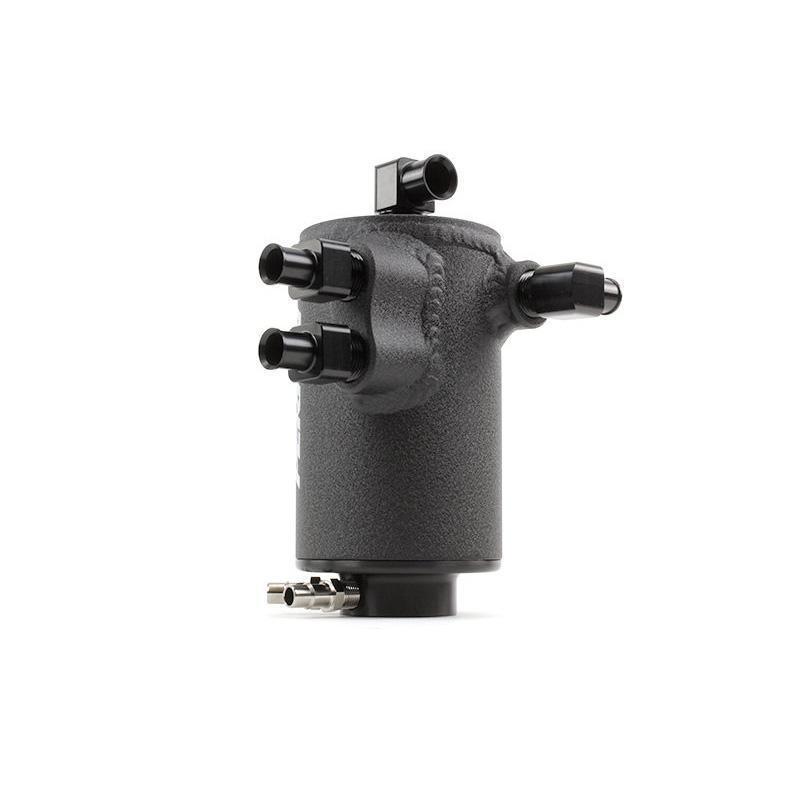

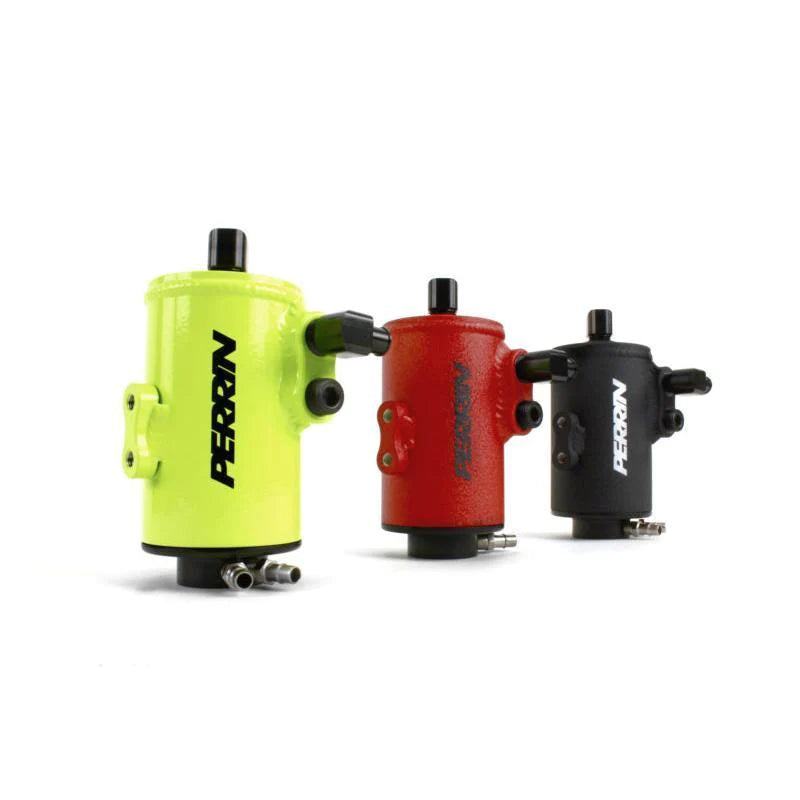

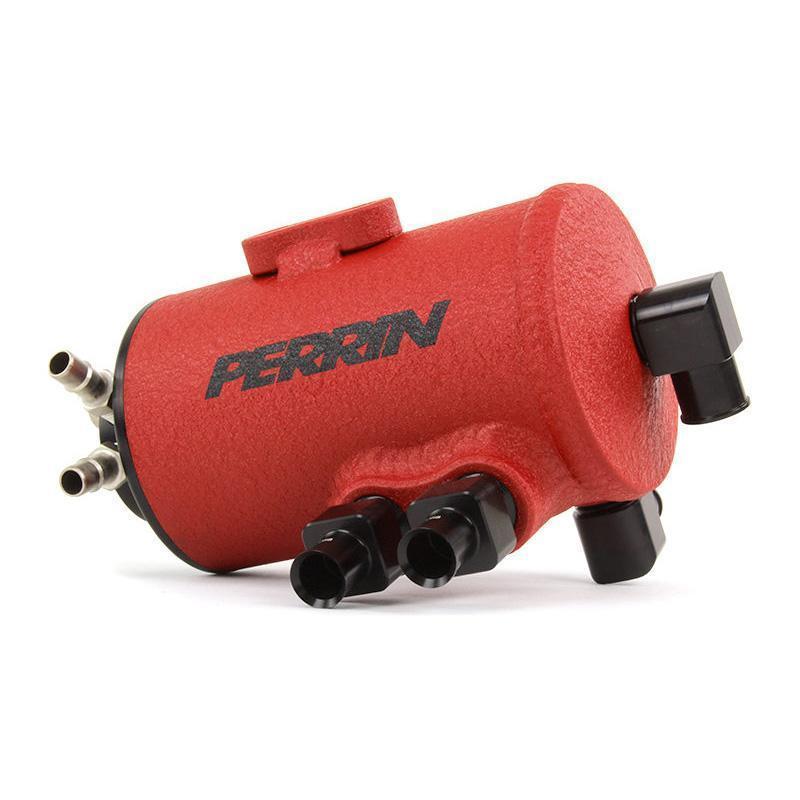

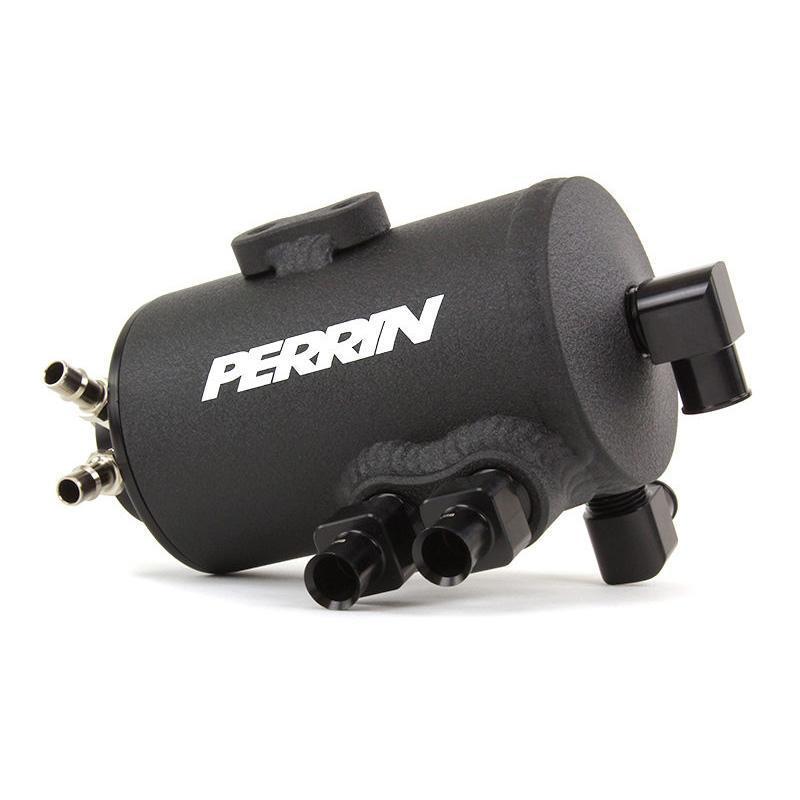

Powder coated for protection against the elements, the textured finish will look awesome for years to come. The PERRIN Air Oil Separator is available in black or red texture powder coating.

Please Note: The Perrin WRX/STi Air Oil Separator is Designed for Left Hand Drive Vehicles Only.
