PRL Motorsports Baffled Coolant Expansion Tank (Red) - Honda Civic Type R FK8 / FL5 2017+ / Civic Si 17-21
PRL Motorsports Baffled Coolant Expansion Tank (Red) - Honda Civic Type R FK8 / FL5 2017+ / Civic Si 17-21
Couldn't load pickup availability
<head><meta charset="UTF-8" /></head>NOTE: Installed photos display Black option, actual product is Red.

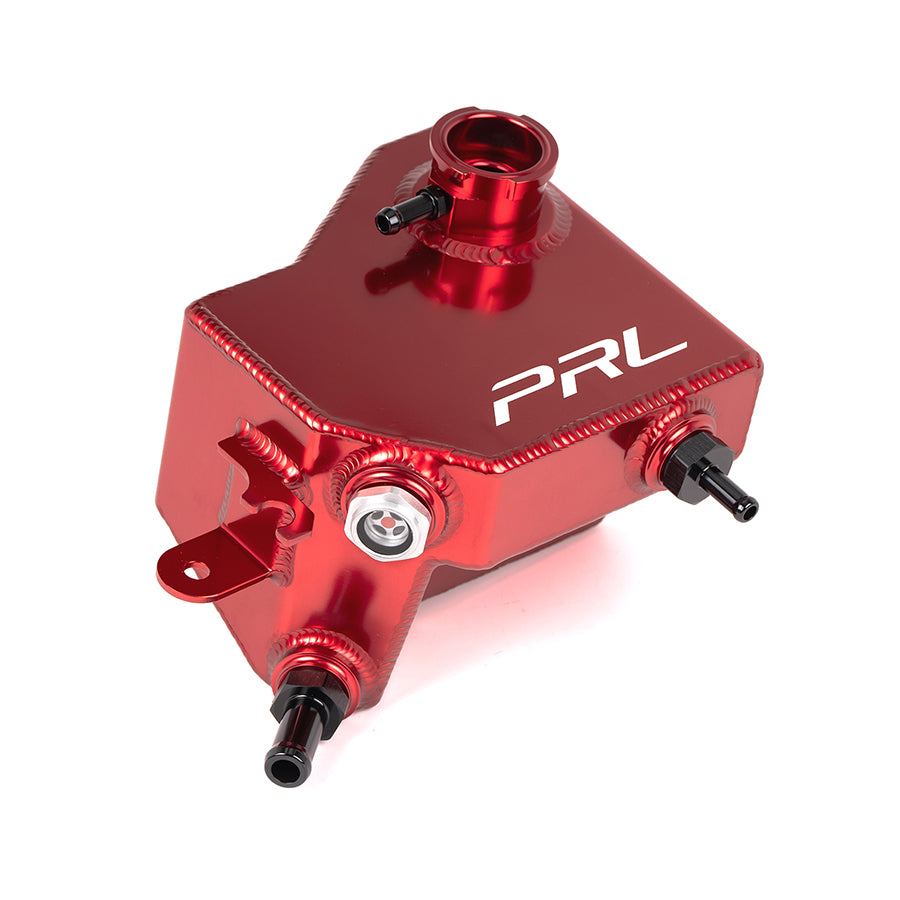

Over time, the factory plastic coolant expansion tanks that Honda/Acura include from the factory can weaken and fail from heat and pressure cycles. The PRL Coolant Expansion Tank kit replaces the factory tank with a more robust aluminum version. Our 6061 aluminum tank will not be effected by temperature and can hold higher pressures so it will out-last the factory tank. Our reservoir also more than doubles the tank's coolant capacity to 1.32 quarts (1.25 liters), while the stock tank only holds .58 quarts (.55 liters) allowing for a greater volume of coolant to carry heat away from the engine internals while maintaining a tidy engine bay.
Our tank is constructed from 3mm thick aluminum and features internal baffling to prevent coolant sloshing and cavitation. This kit includes fittings to fit both the FK8 / FL5 Civic Type R and Acura Integra Type S. The FK8 fittings can also be used to mount this expansion tank on your 2017-2021 Honda Civic Si.
Key Notes:
- Robust 3mm 6061 Aluminum Construction
- Laser Cut and TIG Welded for Unmatched Fit and Finish
- Striking Red or Black Anodized Finish with Laser Engraved Logos
- Billet Machined Barb Fittings and Sight Glass
- Buna-N O-Rings for Unmatched Temperature and Leak Resistance

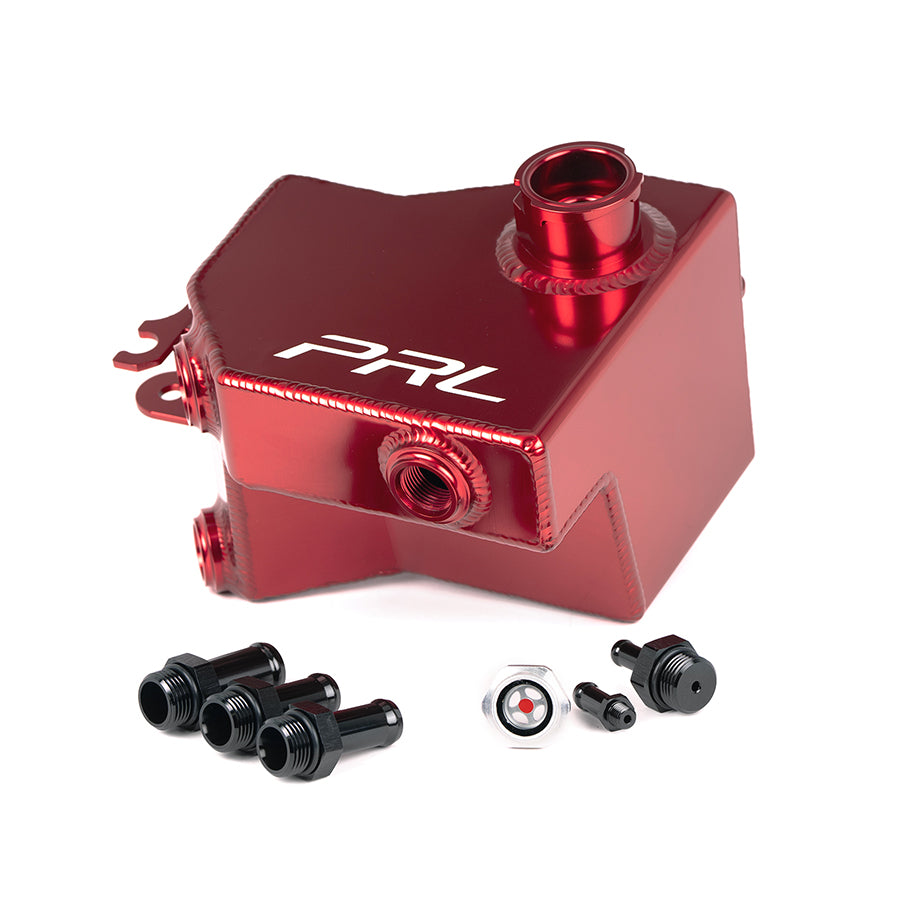

Kit Includes:
- Fully welded and anodized expansion tank (red)
- 1x 1/16" NPT 8mm barb fitting
- 2x 8AN ORB 14mm barb fittings
- 1x 8AN ORB 17mm barb fitting
- 1x 8AN ORB 8mm barb fitting
- 1x 10AN sight glass
