Radium 08-15 EVO X 4B11T Fuel Pump Hanger Without Pumps for WALBRO F90000267/274/285

Radium 08-15 EVO X 4B11T Fuel Pump Hanger Without Pumps for WALBRO F90000267/274/285

Regular price $503.45
Regular price Sale price $503.45
Sale Sold out
Shipping calculated at checkout.

Fuel Hanger, EVO X, Pumps Not Included, Walbro F90000267/274/285

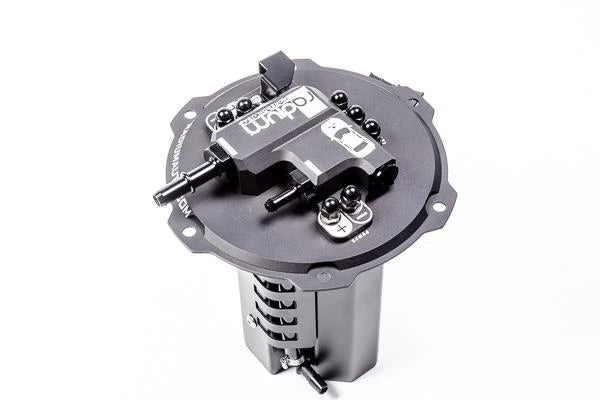

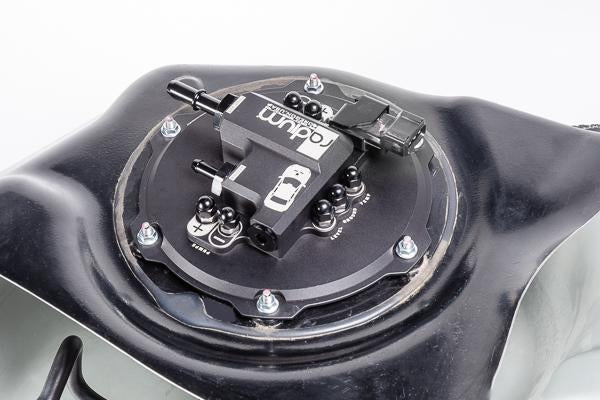

The new Radium Engineering fuel pump hanger for the Mitsubishi Evo X has been redesigned for improved fuel collection and easier installation. It completely replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket fuel pumps to be used.
The OEM level sender, fuel temperature, and fuel tank pressure sensors are retained in order to maintain factory functionality.
Radium Engineering recommends reviewing the installation instructions (posted in the link above) before purchase.
For a complete and comprehensive fuel delivery system for the EVO X.

-8AN ORB Female Pump-Out Port
-6AN ORB Female Return Port
-Collector Box with 1-Way Fill Valve
-Venturi Jet Pump
-Single Merged Fuel Pump Outlet
-High current electrical connections
-Black anodized fittings
-Fuel Level and Temp Sensor Mount

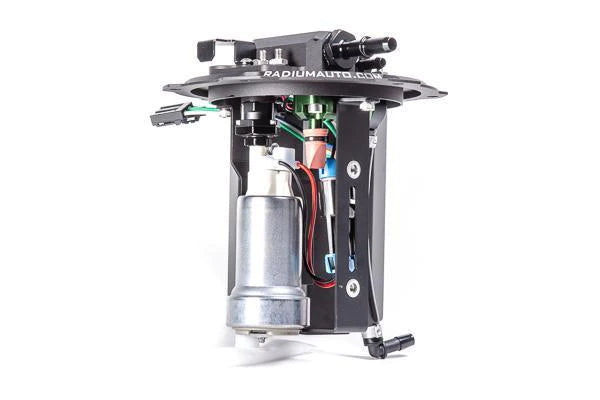

-Compatible with Twin Pumps
-Fluorosilicone Duckbill Return Valve
-Stainless Steel Hardware and Clamps
-Compatible with alternative fuels such as E85

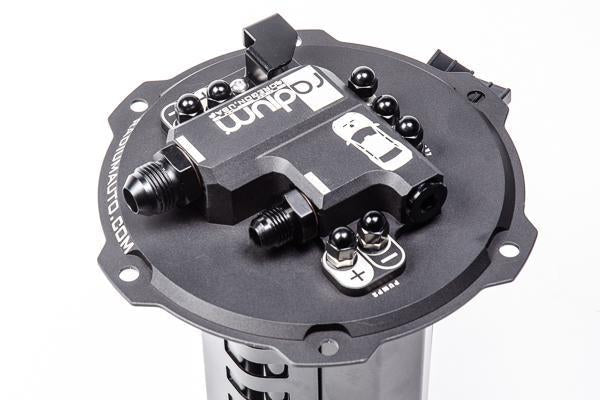

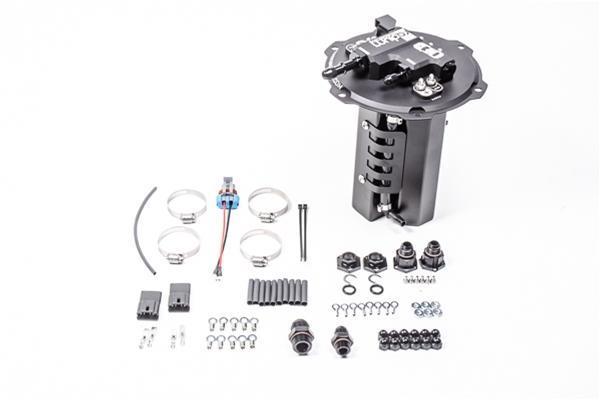

The fuel hanger can also be used with the included 8AN and 6AN adapter fittings, shown below, for installing aftermarket -AN style hoses.
Radium Engineering recommends upgrading the feed and return lines when using multiple pumps.

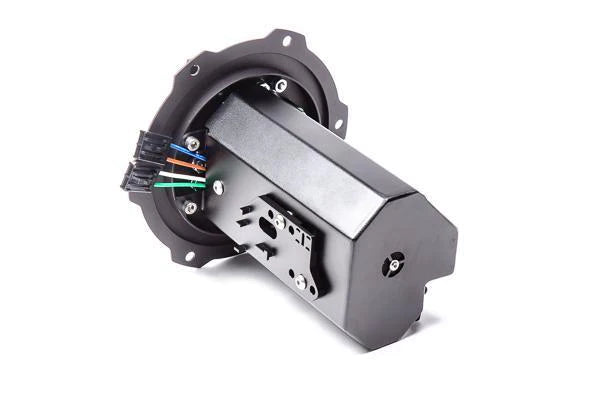

The kit includes a 1-piece anodized aluminum collector box that makes installation a breeze and keeps fuel trapped around the fuel pumps. As shown below, there is a 1-way fill valve incorporated in the bottom of the collector that allows fuel in, but not out. The collector box also stay full from the fuel returning from the pressure regulator.

One major issue with the stock EVO X fuel pump module is the restrictive venturi jet pump in the return line. It performs the important function of transferring fuel from the other side of the fuel tank to the pump module.
When using aftermarket high-flow pumps, the restriction in the fuel return creates unwanted backpressure resulting in unmanageable fuel pressure. Many installers will simply drill out the OEM venturi jet pump to reduce the restriction, but this compromises how effectively the venturi functions.

Radium Engineering has redesigned the siphon system to eliminate restriction but still effectively scavenge fuel. This means higher flowing pumps can safely be used without issue from the return system.
