Radium Catch Can Kit (Dual) for Focus RS
Radium Catch Can Kit (Dual) for Focus RS
Regular price
$436.95
Regular price
Sale price
$436.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Radium Dual Can Kit for the Focus RS mounts to existing bolt holes of the engine bay. No modification of the vehicle is necessary. This kit does NOT vent to atmosphere (VTA), and is emissions and track legal.
Vehicle Fitment:
• 2016+ Ford Focus RS
Install Instructions:
Download PDF
Suggested for Install:
• Petcock Drain Kit
Full Description:
An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excess oil-saturated air circulating back into the air intake stream can lead to degraded performance.
The Radium Engineering catch cans are the most functional and integrated kits on the market! The catch cans mount using factory holes and integrate perfectly with the surrounding components. The two dual oil catch cans (PCV side and Crankcase side) function completely independent of each other and do NOT vent to atmosphere (VTA), thus are emissions and track legal.
Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required.
PCV Side Catch Can Kit:

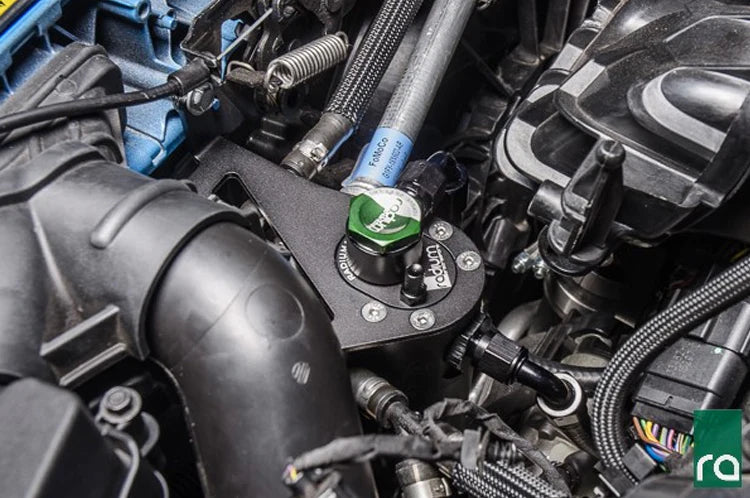

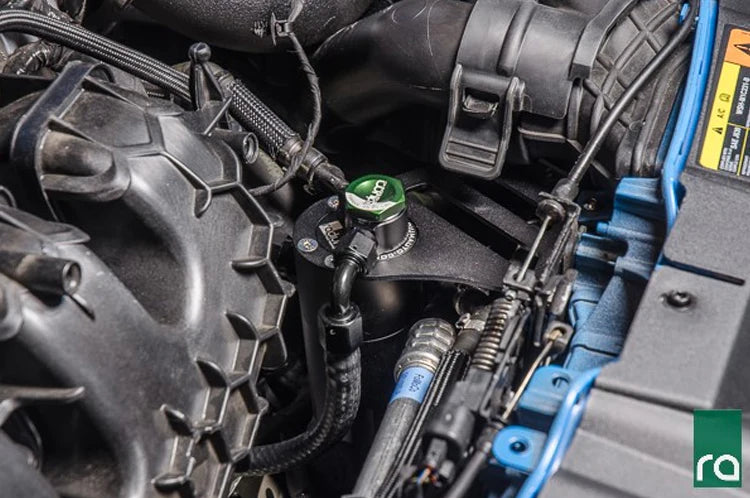

This kit mounts on the front left core support near the radiator of the Focus RS.
This catch can runs inline with the PCV (positive crankcase ventilation) valve and retains it's factory function. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: Because the Radium catch cans are pressure sealed, they are great for this boosted application so intake manifold connection is permitted.
Crankcase Vent Side Catch Can Kit:

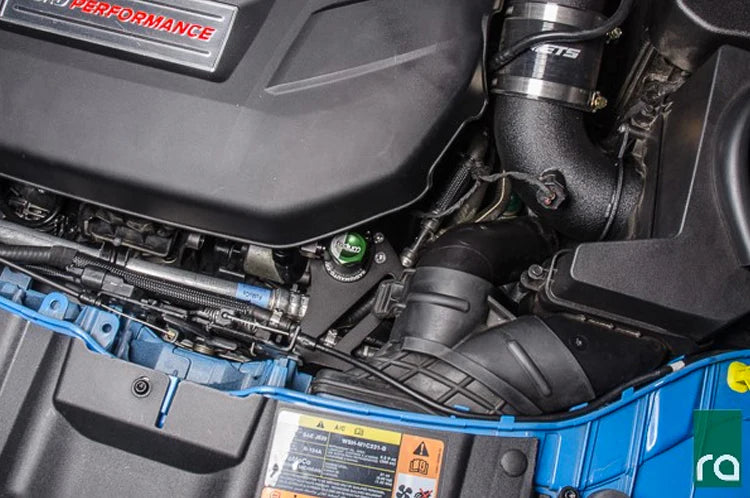

This catch can kit mounts on the back LH side of the Focus RS engine bay.
This catch can runs inline with the crankcase breather port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this hose will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.

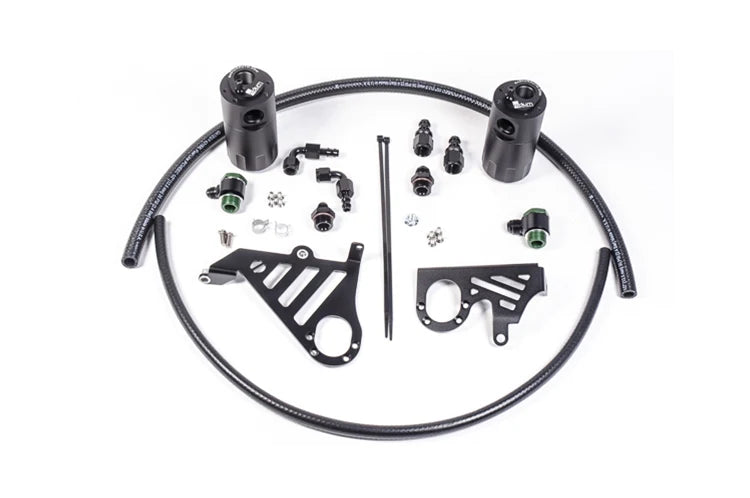

Includes:
• Anodized Oil Catch Can with Integrated Condenser and Dipstick
• Anodized Laser Cut Focus Specific Mounting Bracket
• Anodized Aluminum -AN Adapter Fittings and Hose Ends
• Enough PCV Hose for Custom Applications
• Stainless Steel Mounting Hardware
