Radium Engineering Fuel Rail Nissan Skyline R32 | R33 | R34 1989 -2002
Radium Engineering Fuel Rail Nissan Skyline R32 | R33 | R34 1989 -2002

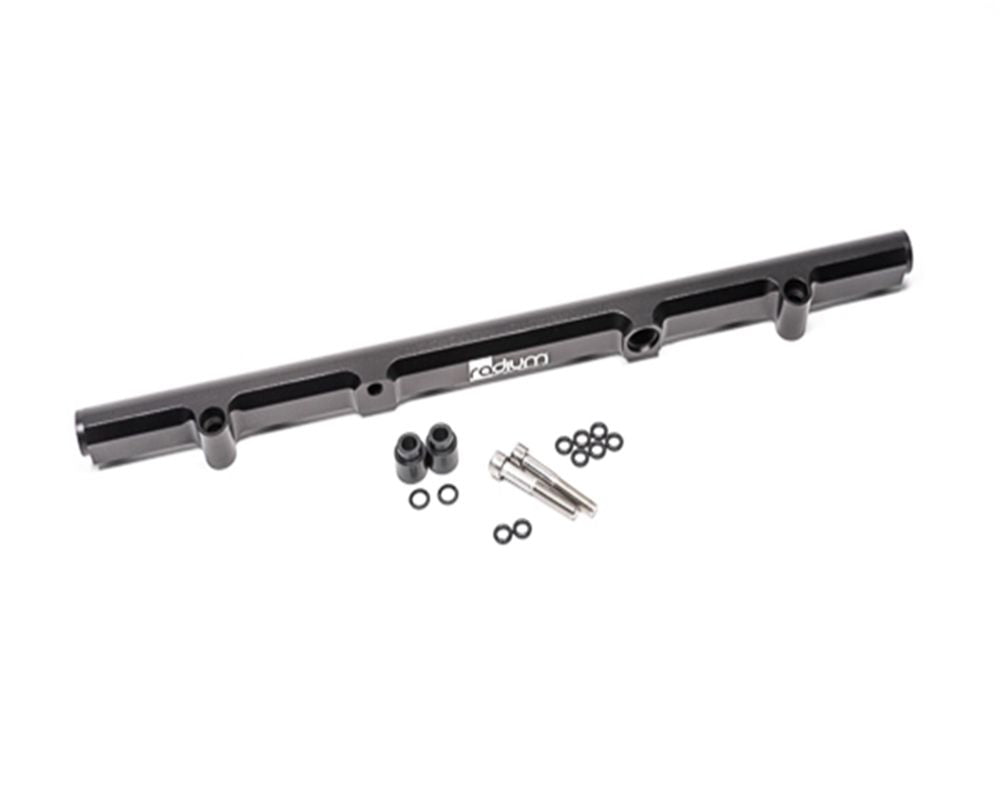

This 1989-2002 Nissan Skyline GT-R fuel rail is designed specifically for OEM (R32/R33/R34) RB26DETT intake manifolds. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish.
For thermal insulation, press-fit machined spacers and washers are included to completely isolate the fuel rail from heat transfer via the manifold and mounting bolts
The fuel rail is designed for any aftermarket injectors that have the same fitment as the OEM injectors. Contact an injector manufacturer to see what they offer. The upper injector bores are machined with a common 11mm ID (Denso). Use the included O-rings if re-using the OEM injectors, otherwise the included O-rings will not be needed.
The rail is compatible with all fuel types including popular alcohol mixtures such as E85.
the front, rear, and center ports use 8AN ORB (3/4"-16 O-ring threads) to accept many adapter fittings for custom high flow fuel system builds.
Includes:
- Black Anodized Aluminum Fuel Rail
- Thermal Insulating Spacers (x2)
- Thermal Insulating Washers (x2)
- Stainless Steel Mounting Bolts (x2)
- FKM O-rings for OEM Injectors (x6)
- This fuel rail does NOT come standard with fittings
- Nissan Skyline R32 1989-1994
- Nissan Skyline R33 1995-1998
- Nissan Skyline R34 1999-2002
