Kthnxbye Racing

Radium Fuel Surge Tank Install Kit for Evo X

Radium Fuel Surge Tank Install Kit for Evo X

Regular price $336.66
Regular price Sale price $336.66
Sale Sold out
Shipping calculated at checkout.
The Radium Evo X Fuel Surge Tank Install Kit is designed to work with the single pump version of the FST and includes everything needed to install the surge tank in a collision-safe area centered behind the rear seat in front of the plastic paneling in the trunk. Does not fit RHD models with the large OEM windshield washer reservoir. The FST and fuel pumps are sold separately.

Vehicle Fitment:
2008-2015 Evolution X
• Compatible with Radium FST (Single Pump)
• Not compatible with MPFST (Multi-Pump)
• Not compatible with RHD Evo with "large OEM washer reservoir"

Compatible FST/Pump Kits:
• 20-0011-00 for Single Walbro GSS342 255LPH
• 20-0059-00 for Single Walbro F90000274 E85
• 20-0124-00 for Single AEM 50-1200 E85

Install Instructions:
Download PDF

Full Description:

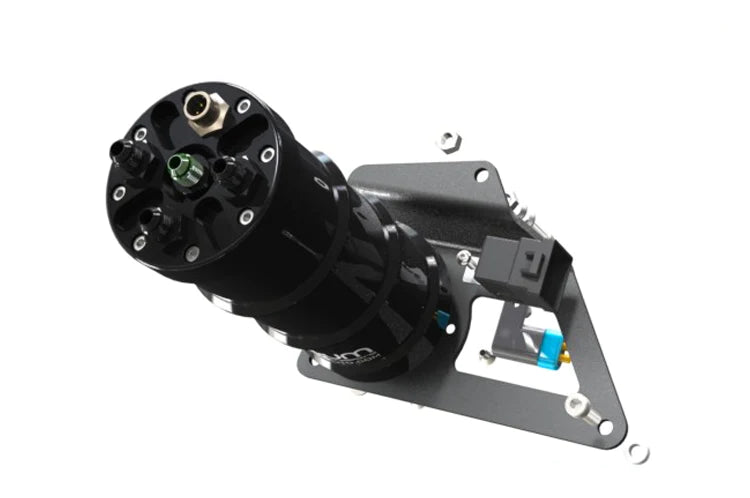

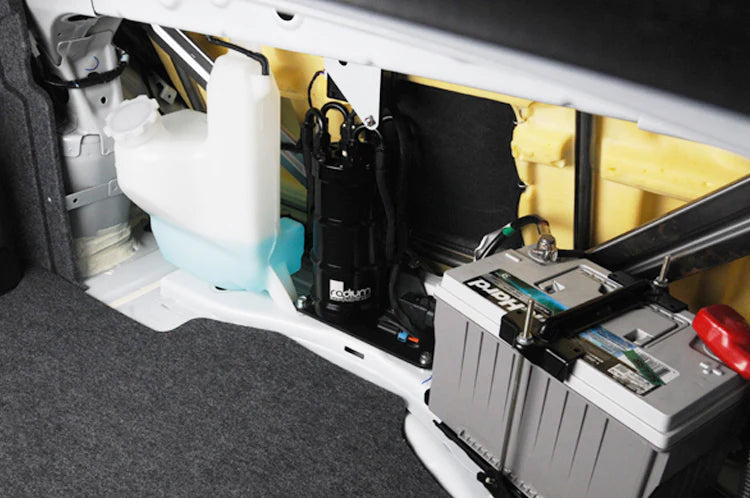

The Mitsubishi Evolution X install kit locates the FST in a collision-safe area, centered behind the rear seat but in front of the plastic paneling in the trunk. This allows 100% of useable trunk space as the panel goes back on after the install. The powder coated aluminum bracket secures to OEM mounting bosses so no drilling or cutting is necessary. The OEM battery and windshield washer fluid bottle are retained and do not need to be relocated.

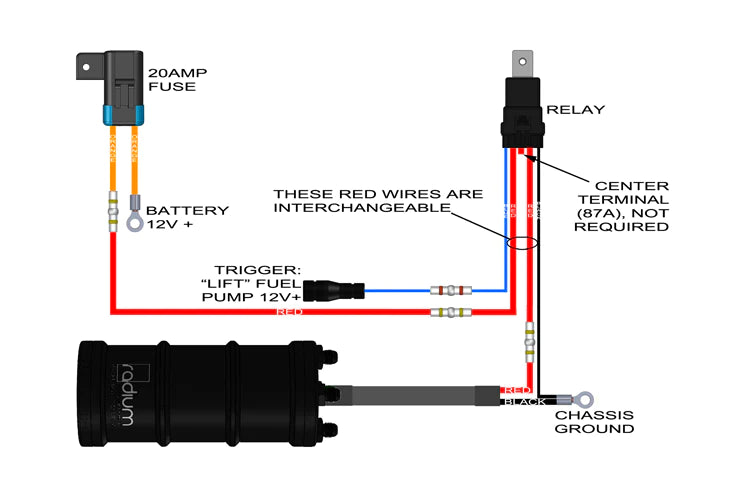

Also included are wiring components with flying leads featuring Raychem solderless butt splices, and a weatherproof fuse and relay to drive the FST fuel pump. Wiring is very simple and takes less than 30 minutes to assemble. No soldering is required.

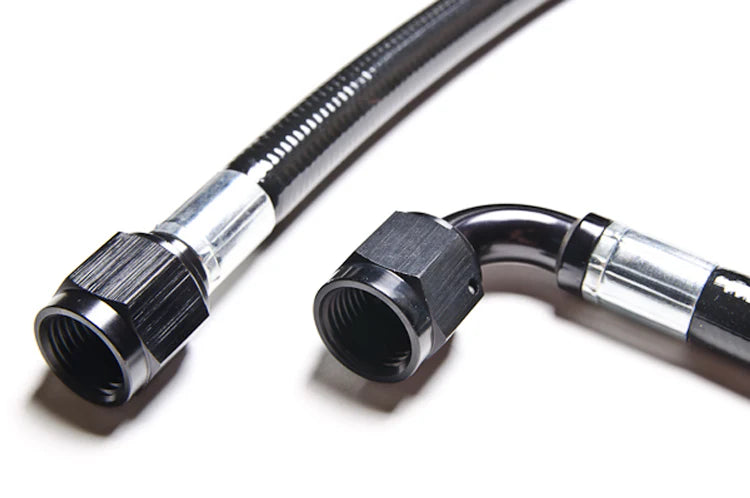

Included are four -6AN PTFE hoses which are cut to length and preassembled.

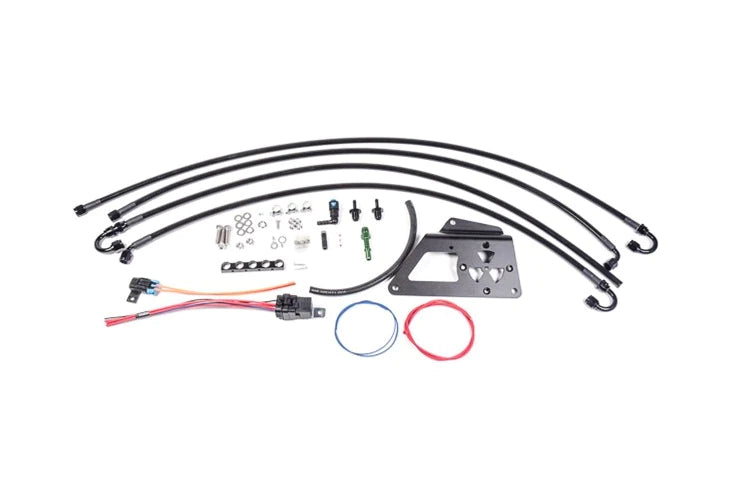

• Preassembled -6AN PTFE Hoses
• Aluminum Mounting Bracket
• AN and OEM Style Adapter Fittings
• Stainless Steel Hardware
• Wiring Components with Relay and Fuse
