Radium High Flow Fuel Filter 6 Micron Microglass

6 Micron Micro-Fiberglass High Flow Fuel Filter by Radium Engineering

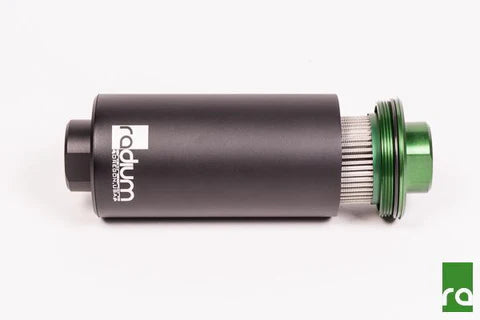

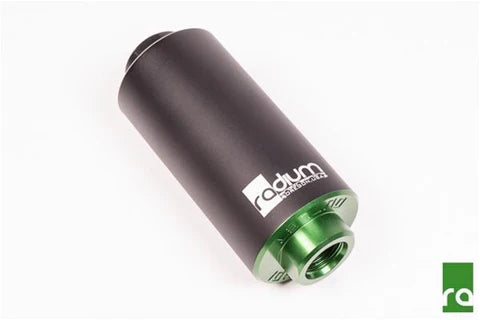

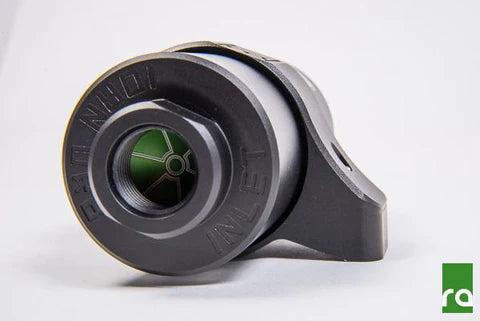

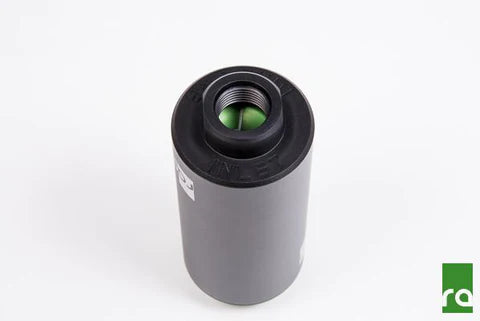

The Radium Engineering high flow fuel filter has a 3 piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. Both removable end caps feature large -10AN ORB female threaded ports for high flow plumbing.

The fuel filter comes preassembled with Viton O-ring seals for all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. High fuel pressures < 150psi can safely be used with negligible pressure drop. The filter features a large 4.2"x1.75" element maximizing flow without sacrificing filtration. The large elements also hold a lot of contaminants without becoming a restriction, resulting in a very long service life.

Several mounting options are available, but not required if you have your own mounts. Radium offers a standard single position mount, a dual-position mount (for use with 2 filters or filter and pump), and a Heat Exchanger mount with cooling fins which help dissipate heat. All of the mounts available are 60mm.

Features

• Advanced Micro-Fiberglass Element
• Highest Filtration Efficiency Available (99.9%)
• Excellent Choice for All Applications
• No maintenance necessary, but will require replacing
• Compatible with All Fuel Types
• Several Mounting Options Available

Applications

• Universal

What's In The Box?

• 1 - 6 Micron Micro-Fiberglass Filter Element
• 1 - Filter Housing
• 1 - Mounting Option (if ordered)
• All Necessary Hardware
• Installation Instructions
• Warranty Information

Instructions/Manuals

• Installation Guide

Warranty

All Radium Engineering brand products are subject to a 1 Year Limited Warranty from the date of original purchase. If a product fails, it will be repaired or replaced at Radium Engineering’s option when it has been determined by Radium Engineering to have failed due to defects in materials or workmanship.
