Tomei Expreme Ti Catback Exhaust Nissan Skyline GT-R R32 89-94
Tomei Expreme Ti Catback Exhaust Nissan Skyline GT-R R32 89-94
Regular price
$1,280.00
Regular price
Sale price
$1,280.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

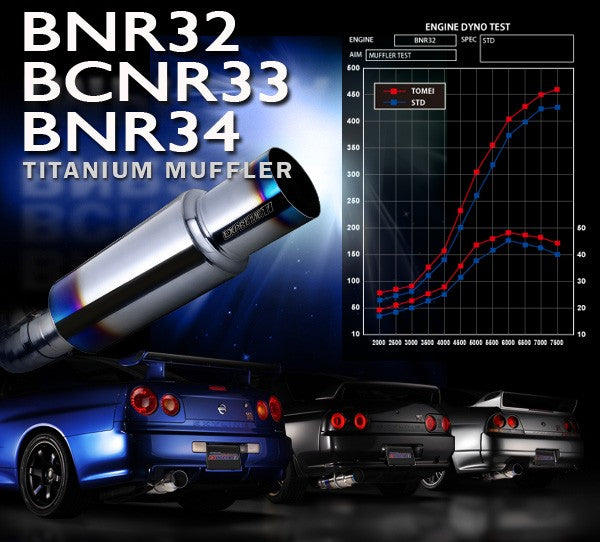

The Ultimate High-Performance Muffler for the 2nd Generation GT-R
High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled in terms of performance and price.
Material: Titanium
Pipe Diameter: 89.1mm
Pipe Thickness: 1mm
Silencer Diameter: 152mm
Silencer Thickness: 1mm
Exit Diameter: 115mm
Exit Thickness: 1mm
Flange Thickness: 8.0mm
Weight: 7.35kg (Std: 19.5kg)

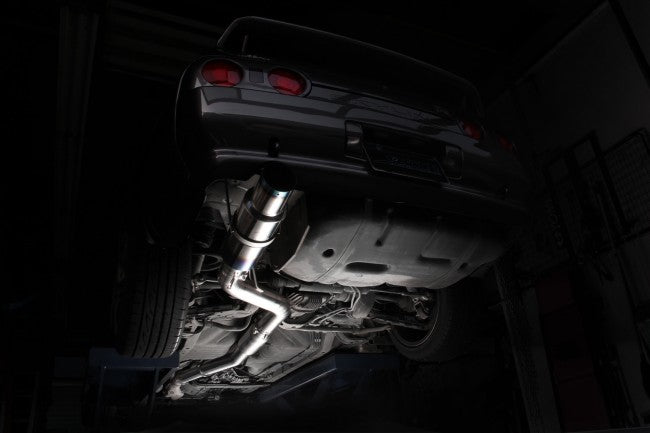

RACING LAYOUT
When aiming for true performance efficiency, we had chosen to design the exhaust with the least amount of bends as possible. Just like the true purpose built race cars, in a racing layout design, yet to still comply with the stock body design so it can be fitted to any street used vehicles.
A : MAIN SILENCER/ TAIL END
Compared with the stock design, our design is single piping all the way for max weight reduction. We have also focused on the design of the muffler to produce the best exhaust sound without compromising performance.
B : MAIN PIPE
The pipe diameter was chosen for optimum exhaust flow efficiency. For performance use in mind and weigh reduction. Thus the slide joints was made instead of using the conventional flange and gasket design.
C : SUB SILENCER
This design was adopted for maximum exhaust flow efficiency without compromising the quality of the structure and sound.
â—‹ Designed For True Performance Use.
・Lightweight (For total balance)
・Optimum Exhaust Flow (To extract the engines full potential, Will benefit greatly with additonal tuning.)
KIT CONTENTS
MAIN PIPE A (1)
MAIN PIPE B (1)
SILENCER ASSY (1)
GASKET (1)
FLANGE NUT M10 (2)
CLAMP BAND (2)
SPRING (4)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
FLANGE NUT M8 (2)
FLANGE BOLT M8 (1)
SOUND REDUCER (1)
BUTTON BOLT M6 (1)
ALLEN KEY (1)
