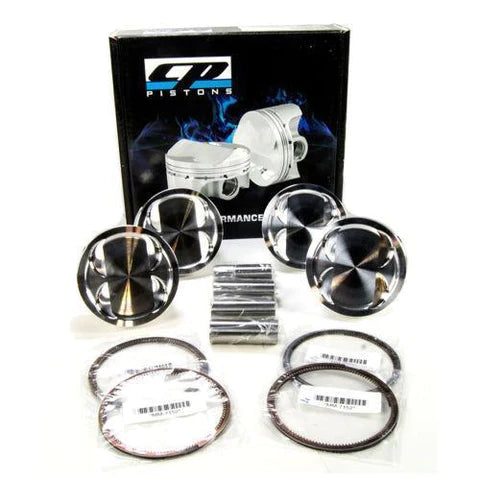

CP Pistons 4G63T 2G Eclipse Evo 8 9 85.5mm 8.5:1 9.0:1 4G63
CP Pistons 4G63T 2G Eclipse Evo 8 9 85.5mm 8.5:1 9.0:1 4G63
CP pistons are available standard or oversized. They are compatible with oversize valves, higher lift cams and high performance rings. CP pistons represent the highest quality and are engineered for maximum power.
STANDARD FEATURES INCLUDE:
-Deep valve relief depth accommodates high lift camshaft
-Made for +1mm valve sizes
-Custom skirt cam and barrel design
-Accumulator grooves
-High strength aluminum forgings
-High performance rings
-Fully CNC machined and balanced to +/- 1 gram
-Wrist pins included at no additional cost
-Double pin oilers, force fed oil ring
-Pick lock grooves for easy lock removal
-Pin fitting included
Car Make: Mitsubishi
Car Model: Eclipse 2g DSM Evo 1-9
Years: 94-06
Engine: 4G63 7 BOLT
Compression Ratio: 8.5:1 9.0:1
Pin Size: 22mm
Compression Height: 1.370
Rod Length: 150mm
Stroke: 88
Bore: 85.5mm
Material: 2849 Alloy
Bore Size: +0.5mm
Standard Pin (Included): 866-2250-15CP1C
Upgraded Pin (Not Included): 866-2250-20CP3C
Pin Locks (Included): 866 063 SWL
Ring Part#: CPN 3366
