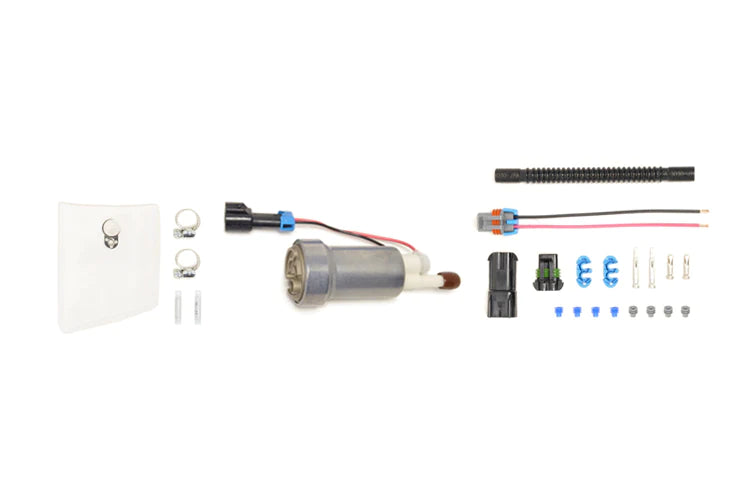

Walbro 525 LPH F90000285 In-Tank Fuel Pump & install kit

Walbro 525 LPH F90000285 In-Tank Fuel Pump & install kit

Regular price $168.00
Regular price Sale price $168.00
Sale Sold out
Shipping calculated at checkout.

Vehicle Fitment:
Universal Fitment
Requires modifications to wiring, fuel lines and fuel module.
Compatible with Evo/DSM/GTR/WRX/STi/3000GT and more!
Professional installation recommended.

Fuel Compatibility:
E85 Safe!

Able to support an aggressive 900+ horsepower, this innovative, dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance.

This innovative design features a single impeller with two parallel rows of turbine blades. Designed for high performance engines outputting 500-900 HP.

• Highest flow in-tank brushed fuel pump offering from TI Automotive
• Featuring award winning DCSS technology
• E85 compatible
• Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
• High pressure relief setting — support supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications
• Flush mountable to existing hanger with installation kit 400-1168

Fuel: GAS & E85
Horsepower: 900+ at 60 PSI
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts
